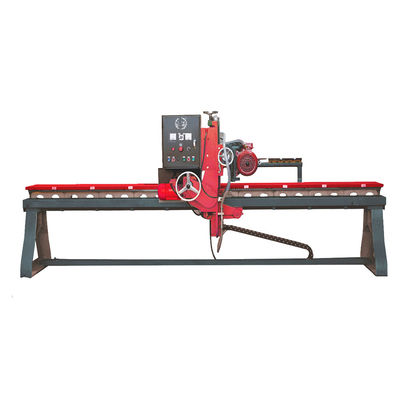

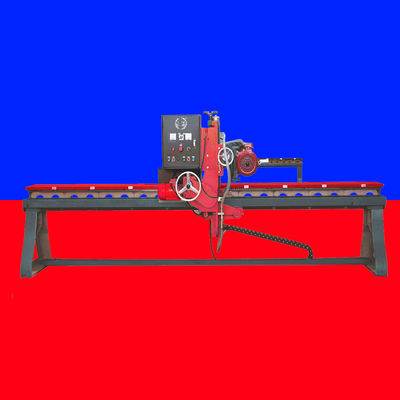

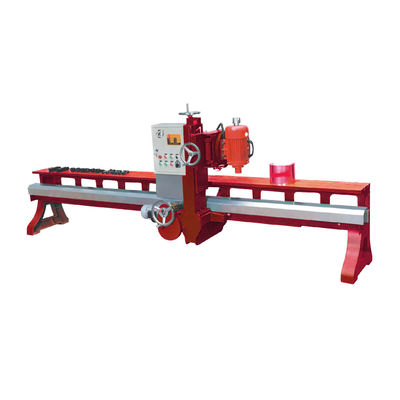

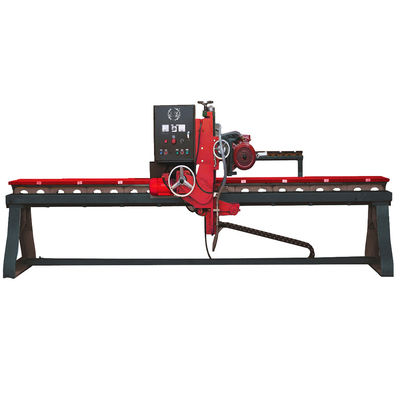

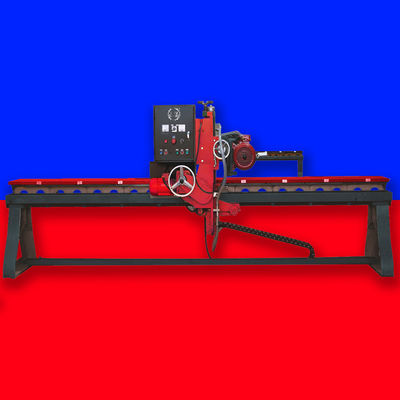

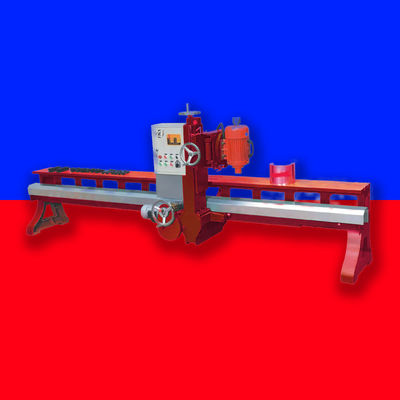

4/3.3KW Wet Granite Edge Profiling Router Machine for Stone Marking Grinding Polishing

Large Image : 4/3.3KW Wet Granite Edge Profiling Router Machine for Stone Marking Grinding Polishing

Product Details:

Place of Origin:	Fujian, China
Brand Name:	LINSING

Payment & Shipping Terms:

Price:	$2,980.00/sets 1-4 sets
Packaging Details:	The inner package is plastic film, and the outer package is wooden frame or wooden box.
Supply Ability:	100 Set/Sets per Month Edge polishing machine

Contact Now

4/3.3KW Wet Granite Edge Profiling Router Machine for Stone Marking Grinding Polishing

Description

Applicable Industries:	Other, Stone Industry	Showroom Location:	None
Condition:	New	Type:	Stone Polishing Machine, Edge Profiling Grinding Machine
Use:	Both Granite And Marble	Production Capacity:	Low Speed
Voltage:	380V/50Hz	Power:	4/3.3KW
Dimension(LWH):	376015501510mm	Weight:	1500 Kg
Warranty:	1 Year	Key Selling Points:	High Cost Performance
Cutting Thickness (max):	Other	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Marketing Type:	Other
Warranty Of Core Components:	1 Year	Core Components:	Pressure Vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC
Product Name:	Edge Polishing Machine	Application:	Stone Marble Granite Quartz Sandstone
Function:	Edge Grinding	Usage:	Wet Use
Control System:	Manual	Color:	Customized Color
Max Grinding Length:	3050mm	Advantage:	Hydraulic
Website:	Https://www.linxingstone.com	Port:	Shanghai, Shenzhen, Ningbo, Xiamen, Etc

Stone Edge Polishing Machine

Edge polishing machines are mainly used for profiling and polishing straight or curve edge and profiling internal or external curves.

Product Features:

1. As to the working table, there are two kinds of length.
2. Each machine is equipped with two kinds of motors (main motor and travelling motor).
3. There are two types of speed (double speed or variable speed).
4. With sealed oil-immersed guide, the working life of machine can be prolonged a lot.
5. Double T-type working table makes it easy to install slabs.
6. The machine can work with high efficiency and precision.
Product Specifications:

Model	Unit	MBJ-10B	MBJ-10D
Main motor power	KW	5.5/4.5kw	4/3.3
Grinding head rotate speed	rpm	1440-2880	1900-3800
Grinding head rotate angle	n°	±8°	±8°
Automatic running speed	m/min	0.3-6	0.2-4
Processing length	mm	≤2650	≤3050
Max. shaping width	mm	600	600
Material thickness	mm	≤150	≤150
Overall dimensions (LWH)	mm	330015501510	376015501510
Water consumption	m³/h	2	2
Approximate weight	Kg	1450	1500

4/3.3KW Wet Granite Edge Profiling Router Machine for Stone Marking Grinding Polishing 0
