3200mm Gantry Type Multiblade Stone Cutting Saw Cutter for Marble Granite Quartz Sandstone

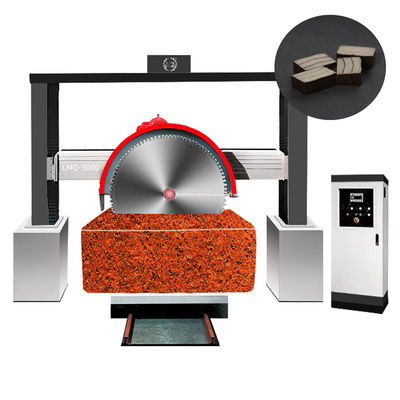

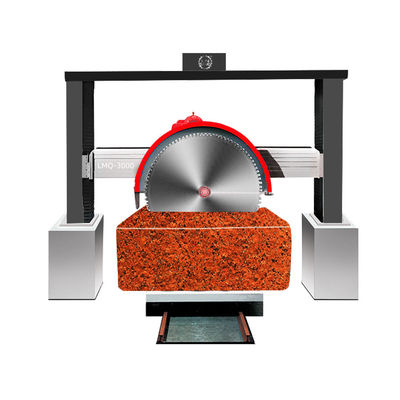

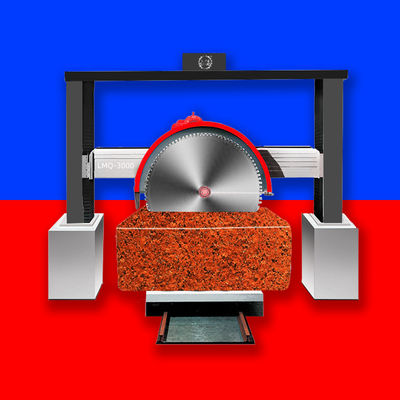

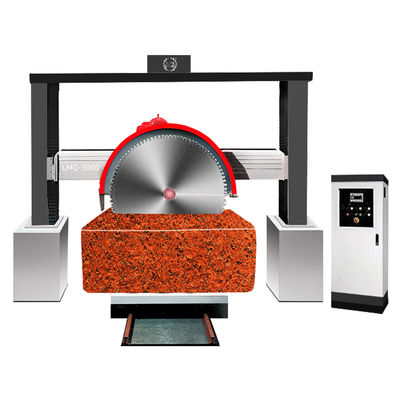

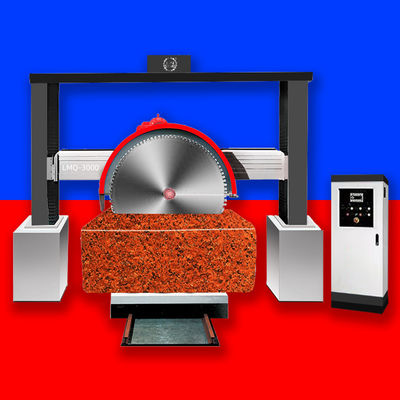

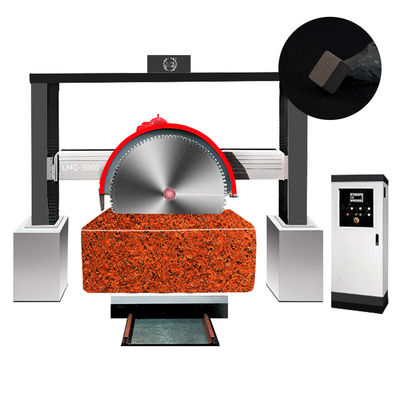

Large Image : 3200mm Gantry Type Multiblade Stone Cutting Saw Cutter for Marble Granite Quartz Sandstone

Product Details:

Place of Origin:	Fujian, China
Brand Name:	LINSING

Payment & Shipping Terms:

Price:	$22,000.00/sets 1-4 sets
Packaging Details:	The outer package is wooden box or wooden frame, and the inner package is plastic film.
Supply Ability:	25 Set/Sets per Month Gantry cutting machine

Contact Now

3200mm Gantry Type Multiblade Stone Cutting Saw Cutter for Marble Granite Quartz Sandstone

Description

Applicable Industries:	Other, Stone Industry	Showroom Location:	None
Condition:	New	Type:	Stone Cutting Machine
Use:	Granite	Production Capacity:	High
Voltage:	380V	Power:	30KW
Dimension(LWH):	As To Machine Details	Weight:	9000 Kg
Warranty:	1 Year	Key Selling Points:	Long Service Life
Cutting Thickness (max):	1350mm	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year	Core Components:	Pressure Vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC
Product Name:	Gantry Cutting Machine	Keyword:	Heavy Duty Block Cutting Machine
Application:	Stone Marble Granite Quartz Sandstone	Function:	Cut Block
Control System:	PLC(imported Brand)	Usage:	Wet Use
Feature:	High Efficiency Low Cost	Color:	Customer's Request
Blade Diameter:	1000-3000mm	Max Cutting Length:	3200mm
Port:	Shanghai, Shenzhen, Ningbo, Xiamen, Etc

Gantry Cutting Machine For Block Cutting

Gantry cutting machine mainly used for cutting marble, granite, bluestone, tombstone and so on.

Product Features:

This types of sawing machine (gantry saw machine) is composed of beams and composite drag board system, with the method of dragging plate up and down movement to realize longitudinal feed, dragging plate beam yan about motion to realize transverse feeding, main motor drives the saws for cutting stone material, the type of disk saw machine structure is simple, compact, low cost, high efficiency, wide applicable scope, is the most common stone machine, Therefore, it has been widely used in stone industry.
1. Crossbeam lift structure(up&down),V-shape that can achive a precise and stable cutting.
2. main spindle box move side to side (x-axis) along the cross beam.
3. Imported frequency convter is equipped and stepless speed adjusting is available.
4. Mechanotronic design &PLC controlling systerm for an easy and user-friendly operation.
5. Workbench can rotate 360°.

Product specifications:

Model	Unit	LXLMQ-2200	LXLMQ-2500	LXLMQ-3000
Max. diameter of blade	mm	2200	2500	3000
Max. No. of blades	pc	3	1	1
Recommended Blade Combination	mm	2200 1600 940	2500	3000
Recommend saw blade thickness	mm	6.5/7.2/8.0	8/8.5/9.0	8.0/9.0/9.5
Main motor power	KW	30	30	37
Table dimensions(L*W)	mm	3200*2000	3000*2000	2500*2000
Max. cutting size(LWH)	mm	32002000950	300020001100	250020001350
Overall dimensions(LWH)	mm	66006004800	660060004800	700047006000
Water consumption	m3/h	6	6	6
Approximate weight	Kg	9000	9500	9700
