Max Cutting Length 3200mm LINSING Marble Block Cutting Machine for Granite Service

Max Cutting Length 3200mm LINSING Marble Block Cutting Machine for Granite Service
Max Cutting Length 3200mm LINSING Marble Block Cutting Machine for Granite Service Max Cutting Length 3200mm LINSING Marble Block Cutting Machine for Granite Service Max Cutting Length 3200mm LINSING Marble Block Cutting Machine for Granite Service Max Cutting Length 3200mm LINSING Marble Block Cutting Machine for Granite Service Max Cutting Length 3200mm LINSING Marble Block Cutting Machine for Granite Service Max Cutting Length 3200mm LINSING Marble Block Cutting Machine for Granite Service

Large Image :  Max Cutting Length 3200mm LINSING Marble Block Cutting Machine for Granite Service

Product Details:
Place of Origin: Fujian, China
Brand Name: LINSING
Payment & Shipping Terms:
Price: $22,000.00/sets 1-4 sets
Packaging Details: The outer package is wooden box or wooden frame, and the inner package is plastic film.
Supply Ability: 25 Set/Sets per Month Gantry cutting machine
Contact Now

Max Cutting Length 3200mm LINSING Marble Block Cutting Machine for Granite Service

Description
Applicable Industries: Other, Stone Industry Showroom Location: None
Condition: New Type: Stone Cutting Machine
Use: Granite Production Capacity: High
Voltage: 380V Power: 30KW
Dimension(L*W*H): As To Machine Details Weight: 9000 Kg
Warranty: 1 Year Key Selling Points: Long Service Life
Cutting Thickness (max): 1350mm Machinery Test Report: Provided
Video Outgoing-inspection: Provided Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year Core Components: Pressure Vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC
Product Name: Gantry Cutting Machine Keyword: Heavy Duty Block Cutting Machine
Application: Stone Marble Granite Quartz Sandstone Function: Cut Block
Control System: PLC(imported Brand) Usage: Wet Use
Feature: High Efficiency Low Cost Color: Customer's Request
Blade Diameter: 1000-3000mm Max Cutting Length: 3200mm
Port: Shanghai, Shenzhen, Ningbo, Xiamen, Etc

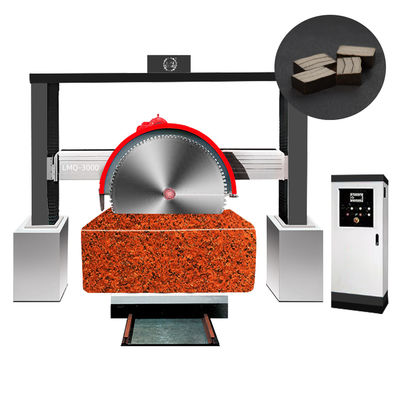

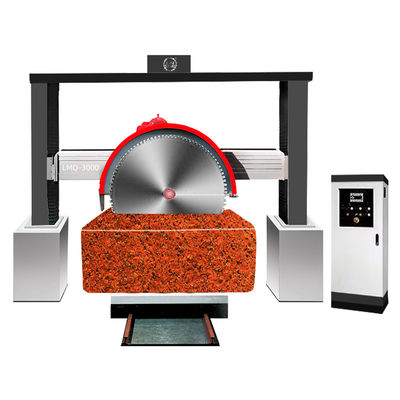

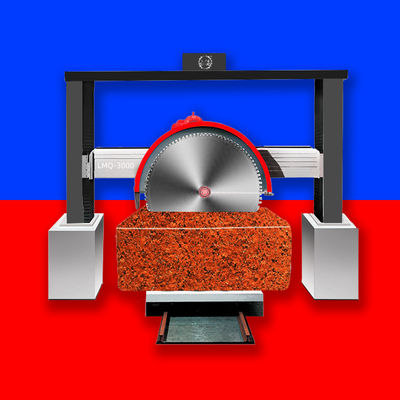

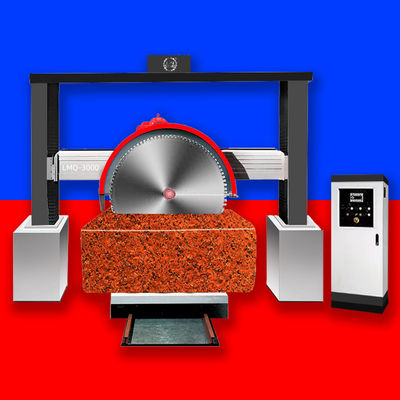

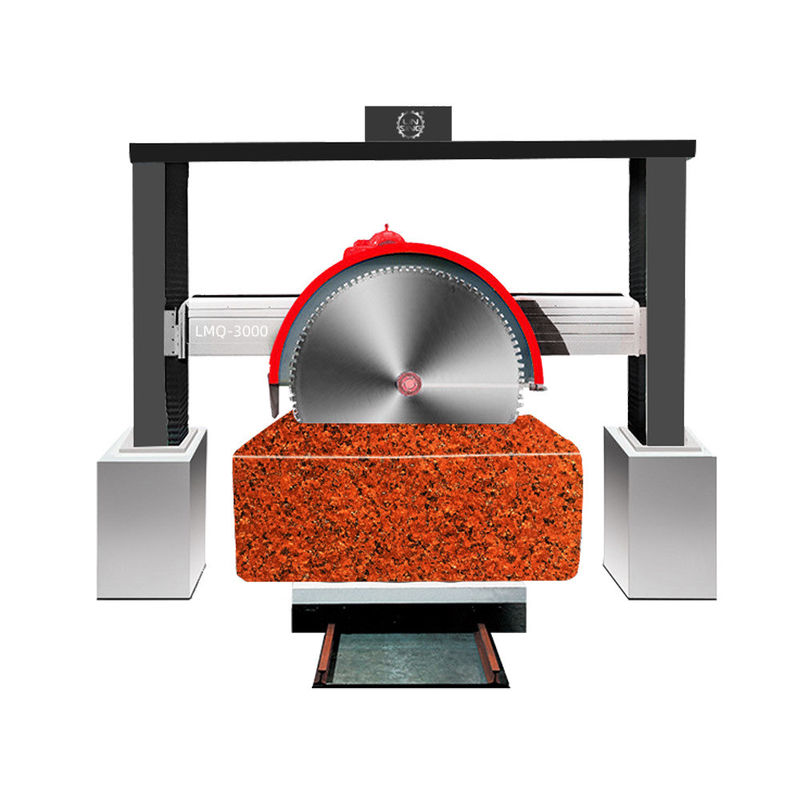

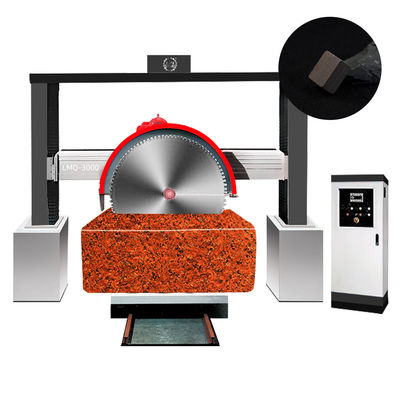

Gantry Cutting Machine For Block Cutting

Gantry cutting machine mainly used for cutting marble, granite, bluestone, tombstone and so on.

Product Features:

This types of sawing machine (gantry saw machine) is composed of beams and composite drag board system, with the method of dragging plate up and down movement to realize longitudinal feed, dragging plate beam yan about motion to realize transverse feeding, main motor drives the saws for cutting stone material, the type of disk saw machine structure is simple, compact, low cost, high efficiency, wide applicable scope, is the most common stone machine, Therefore, it has been widely used in stone industry.
1. Crossbeam lift structure(up&down),V-shape that can achive a precise and stable cutting.
2.  main spindle box move side to side (x-axis) along the cross beam.
3. Imported frequency convter is equipped and stepless speed adjusting is available.
4. Mechanotronic design &PLC controlling systerm for an easy and user-friendly operation.
5. Workbench can rotate 360°.

Product specifications:

Model Unit LXLMQ-2200 LXLMQ-2500 LXLMQ-3000
Max. diameter of blade mm 2200 2500 3000
Max. No. of blades pc 3 1 1
Recommended Blade Combination mm 2200 1600  940 2500 3000
Recommend saw blade thickness mm 6.5/7.2/8.0 8/8.5/9.0 8.0/9.0/9.5
Main motor power KW 30 30 37
Table dimensions(L*W) mm 3200*2000 3000*2000 2500*2000
Max. cutting size(L*W*H) mm 3200*2000*950 3000*2000*1100 2500*2000*1350
Overall dimensions(L*W*H) mm 6600*600*4800 6600*6000*4800 7000*4700*6000
Water consumption m3/h 6 6 6
Approximate weight Kg 9000 9500 9700
