380V Voltage Diamond Wire Rope Machine for Cutting Marble Limestone at 45KW Economy

380V Voltage Diamond Wire Rope Machine for Cutting Marble Limestone at 45KW Economy
380V Voltage Diamond Wire Rope Machine for Cutting Marble Limestone at 45KW Economy 380V Voltage Diamond Wire Rope Machine for Cutting Marble Limestone at 45KW Economy 380V Voltage Diamond Wire Rope Machine for Cutting Marble Limestone at 45KW Economy 380V Voltage Diamond Wire Rope Machine for Cutting Marble Limestone at 45KW Economy 380V Voltage Diamond Wire Rope Machine for Cutting Marble Limestone at 45KW Economy

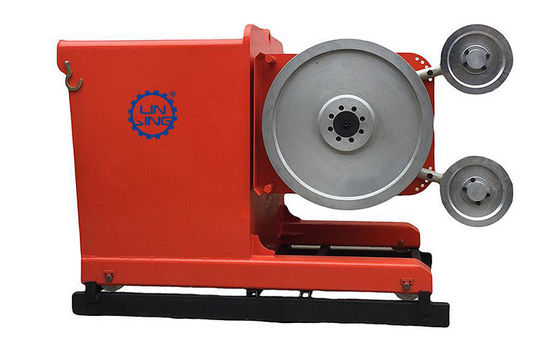

Large Image :  380V Voltage Diamond Wire Rope Machine for Cutting Marble Limestone at 45KW Economy

Product Details:
Place of Origin: China
Brand Name: Linsing
Payment & Shipping Terms:
Price: $14,000.00/sets >=1 sets
Packaging Details: waterproof and damageproof standard packaging<br>carton box with logo<br>as the customer's requirement
Supply Ability: 5 Set/Sets per Day
Contact Now

380V Voltage Diamond Wire Rope Machine for Cutting Marble Limestone at 45KW Economy

Description
Applicable Industries: Energy & Mining, Other Showroom Location: None
Condition: New Type: Stone Cutting Machine
Use: Granite Production Capacity: 1000m2 Stone Block
Voltage: 380V Power: 45KW
Dimension(L*W*H): 120x120x140CM Weight: 1400 Kg
Warranty: 6 Months Key Selling Points: Energy Saving
Cutting Thickness (max): 12.5MM Machinery Test Report: Provided
Video Outgoing-inspection: Provided Marketing Type: New Product 2020
Warranty Of Core Components: 6 Months Core Components: Motor, Engine, PLC
After-sales Service Provided: Online Support Product Name: Diamond Wire Saw Machine
Function: Cutting Granite Keyword: Dimond Wire Saw
Feature: High Cutting Efficiency Usage: Quarry Cutting
Brand: Linsing Color: Red
Motor: 45KW Advantage: Economy
Port: Xiamen/Shenzhen/Guangzhou/Shanghai/Ningbio

Wire Saw Machine For Quarrying&Mining

Diamond wire saws can be used on all types of marble, granite, and stone, with maximum productivity and diamond wire durability at maximum cutting speed All controls are fully automatic and do not require the constant presence of the operator.

Product feature:
1. The main motor is powered by the inverter to obtain the suitable wire speed according to the type of granite or marble. It is applicable for quarrying all kinds of granite and marble.
2.  Apply vector inverter with invariable torque. Feed speed can be regulated automatically and smoothly as cutting force changes.
3.  The control cabinet is placed separately within a side door. It is easy to do maintenance work.
4.  Double dust-proof and waterproof structure is used to protect the main motor. The guide poles and screw rods are isolated with dust and water by the flexible lags. Greatly extend the life of the machines.
5.  Easily regulate the position and angle of the driving flywheel by motors.
6.  Display the real-time the parameters, such as the main motor’s current, and the flywheel’s speed.
7.  The machine can be operated manually or automatically.
Product specification:

Model SKSJ-45 SKSJ-55 SKSJ-75
Power of main motor 45 55 75
Length of wire 20-100 20-120 20-150
Diameter of bead Φ11.5 Φ11.5 Φ11.5
Linear velocity 0-30 0-30 0-50
Lead rail moving distance 6 6 6
Diameter of driving wheel Φ700-900 Φ700-900 Φ700-900
Water consumption  3 4 5
Working temperature -55 -55 -55
Power head rotary 0-360 0-360 0-360
Dimension(L×W×H) 120x120x140 120x120x140 120x120x140
Weight 1400 1500 1600
