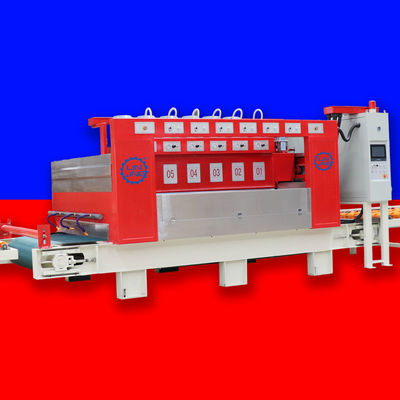

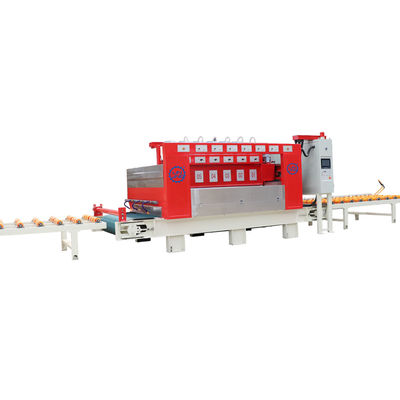

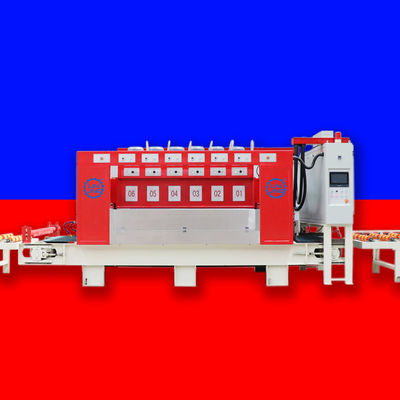

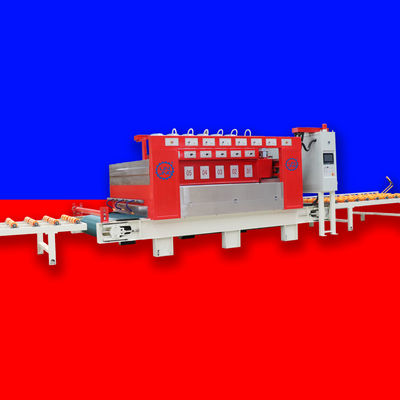

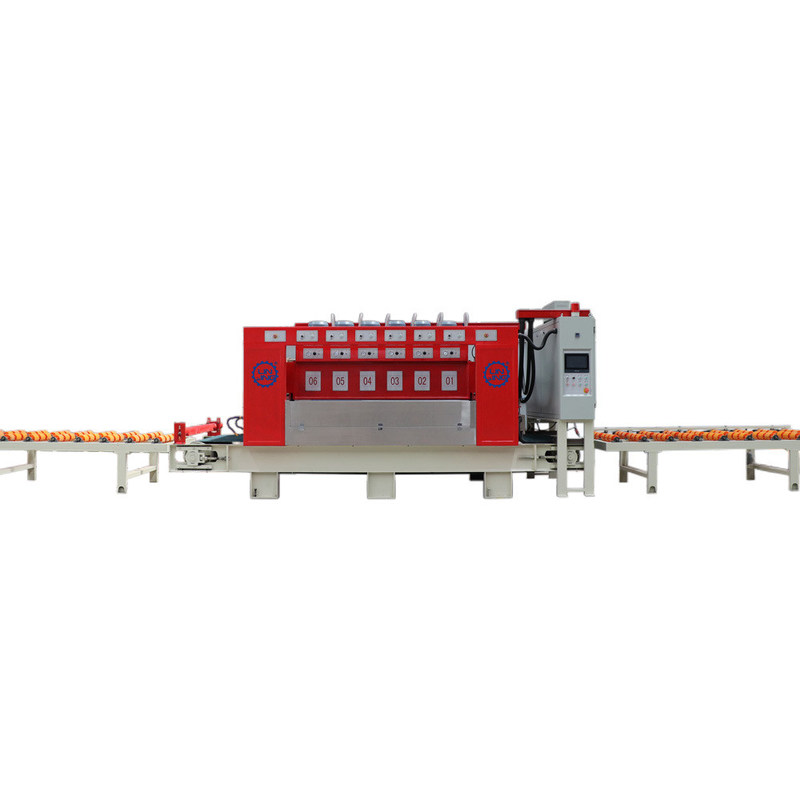

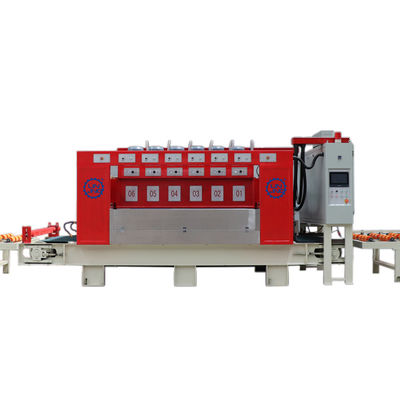

Grinding Function PLC Automatic Continuous Granite Marble Stone Bush Hammering Machine

Grinding Function PLC Automatic Continuous Granite Marble Stone Bush Hammering Machine
Grinding Function PLC Automatic Continuous Granite Marble Stone Bush Hammering Machine Grinding Function PLC Automatic Continuous Granite Marble Stone Bush Hammering Machine Grinding Function PLC Automatic Continuous Granite Marble Stone Bush Hammering Machine Grinding Function PLC Automatic Continuous Granite Marble Stone Bush Hammering Machine Grinding Function PLC Automatic Continuous Granite Marble Stone Bush Hammering Machine Grinding Function PLC Automatic Continuous Granite Marble Stone Bush Hammering Machine

Large Image :  Grinding Function PLC Automatic Continuous Granite Marble Stone Bush Hammering Machine

Product Details:
Place of Origin: Fujian, China
Brand Name: LINSING
Payment & Shipping Terms:
Price: $28,000.00/sets 1-2 sets
Packaging Details: 1) Covered by plastic film wholely.<br>2) Packed in plywood cartons for spare parts.<br>3) Locked with steel ropes for anti-skid suitable for shipment by container.
Supply Ability: 25 Set/Sets per Month
Contact Now

Grinding Function PLC Automatic Continuous Granite Marble Stone Bush Hammering Machine

Description
Applicable Industries: Energy & Mining, Other, Stone Industry Showroom Location: None
Condition: New Type: Stone Grinding Machine
Use: Stone Slab Surface Processing Production Capacity: 500-1000m2/day
Voltage: 380V Power: 47KW
Dimension(L*W*H): 5200*2700*2300mm Weight: 5500 Kg
Warranty: 1 Year Key Selling Points: High-accuracy
Cutting Thickness (max): 100mm Machinery Test Report: Provided
Video Outgoing-inspection: Provided Marketing Type: Best Selling
Warranty Of Core Components: 1 Year Core Components: Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC
Product Name: Bush Hammering Machine Keyword: Litchi Surface Grinding Machine
Function: Grinding Usage: Tile Slabs
Application: Stone Marble Granite Quartz Sandstone Control System: PLC(imported Brand)
Feature: High Efficiency Color: Customised
Working Area: 3000*1200mm Water Consumption: 8m3/h
Port: Xiamen/Shenzhen/Guangzhou/Shanghai/Ningbio

Full-Automatic Bush Hammering Machine

Full automatic Bush Hammering Machine with 6/8-head is your ideal machine to process litchi surface with high production, easy operation and perfect result. The head is adjusted automatically with same depth, lower cost and lower breakage rate. Different size, irregular shape or thin slab with 10mm are all acceptable to process litchi surface.

Product Features:
Full-automatic continuous litchi noodle mill, based on the principle of continuous walking, through the improvement of grinding head and program conversion, becomes a new type of continuous litchi noodle machine. The operation control system adopts PLC terminal control, and the parameter setting is carried out through the LCD touch screen. Grinding and polishing adopts pneumatic control, and its pressure is adjustable within the set value. This litchi noodle machine can automatically identify the thickness of the plate, the processing process is safe, the processing effect is uniform, the plate is not easy to break, and it saves labor.

1. The automatic litchi surface bush hammering machine with 6-heads or 8-heads is your ideal machine to process litchi surface with high production, easy operation and perfect result.
2. The head is adjusted automatically with same depth, lower cost and lower breakage rate.
3. Different size, irregular shape or thin slab with 10mm are all acceptable to process litchi surface.
Product Specifications:

Type Unit LXLZ-6 LXLZ-8
Head number pcs 6 8
Main motor power kw 5.5 5.5
Total power kw 36 47
Mill diameter mm 200 200
Grinding plate width mm 1200 1200
Grinding plate thickness mm 10-100 10-100
Beam swing speed m/min 3-35 3-35
Into the plate velocity m/min 1-4 1-4
Cooling water pressure mpa 0.1-0.5 0.1-0.5
Water consumption m³/h 6 8
Gas supply pressure mpa 0.8 0.8
Overall dimensions(L*W*H) mm 4500×2700×2300 5200×2700×2300
Weight kg 4000 5500

Grinding Function PLC Automatic Continuous Granite Marble Stone Bush Hammering Machine 0Grinding Function PLC Automatic Continuous Granite Marble Stone Bush Hammering Machine 1Grinding Function PLC Automatic Continuous Granite Marble Stone Bush Hammering Machine 2Grinding Function PLC Automatic Continuous Granite Marble Stone Bush Hammering Machine 3Grinding Function PLC Automatic Continuous Granite Marble Stone Bush Hammering Machine 4Grinding Function PLC Automatic Continuous Granite Marble Stone Bush Hammering Machine 5Grinding Function PLC Automatic Continuous Granite Marble Stone Bush Hammering Machine 6Grinding Function PLC Automatic Continuous Granite Marble Stone Bush Hammering Machine 7Grinding Function PLC Automatic Continuous Granite Marble Stone Bush Hammering Machine 8Grinding Function PLC Automatic Continuous Granite Marble Stone Bush Hammering Machine 9Grinding Function PLC Automatic Continuous Granite Marble Stone Bush Hammering Machine 10Grinding Function PLC Automatic Continuous Granite Marble Stone Bush Hammering Machine 11
