47KW LINSING Stone Slab Tile Bush Hammer Chiseled Rough Picking Marble Sandblasted Surface Granite Grinding Machine

Large Image : 47KW LINSING Stone Slab Tile Bush Hammer Chiseled Rough Picking Marble Sandblasted Surface Granite Grinding Machine

Product Details:

Place of Origin:	Fujian, China
Brand Name:	LINSING

Payment & Shipping Terms:

Price:	$28,000.00/sets 1-2 sets
Packaging Details:	1) Covered by plastic film wholely.<br>2) Packed in plywood cartons for spare parts.<br>3) Locked with steel ropes for anti-skid suitable for shipment by container.
Supply Ability:	25 Set/Sets per Month

Contact Now

47KW LINSING Stone Slab Tile Bush Hammer Chiseled Rough Picking Marble Sandblasted Surface Granite Grinding Machine

Description

Applicable Industries:	Energy & Mining, Other, Stone Industry	Showroom Location:	None
Condition:	New	Type:	Stone Grinding Machine
Use:	Stone Slab Surface Processing	Production Capacity:	500-1000m2/day
Voltage:	380V	Power:	47KW
Dimension(LWH):	520027002300mm	Weight:	5500 Kg
Warranty:	1 Year	Key Selling Points:	High-accuracy
Cutting Thickness (max):	100mm	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Marketing Type:	Best Selling
Warranty Of Core Components:	1 Year	Core Components:	Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC
Product Name:	Bush Hammering Machine	Keyword:	Litchi Surface Grinding Machine
Function:	Grinding	Usage:	Tile Slabs
Application:	Stone Marble Granite Quartz Sandstone	Control System:	PLC(imported Brand)
Feature:	High Efficiency	Color:	Customised
Working Area:	3000*1200mm	Water Consumption:	8m3/h
Port:	Xiamen/Shenzhen/Guangzhou/Shanghai/Ningbio

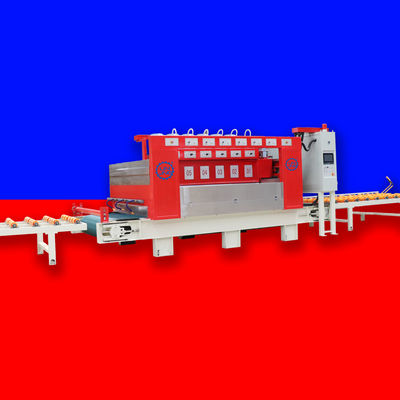

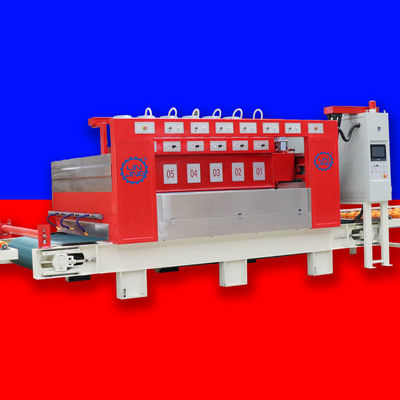

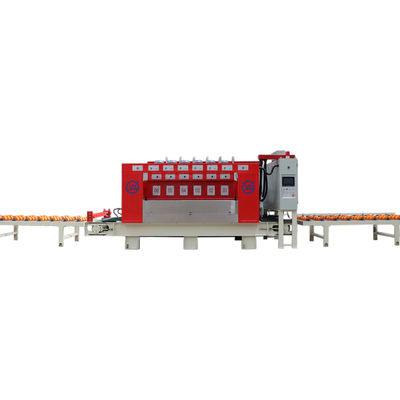

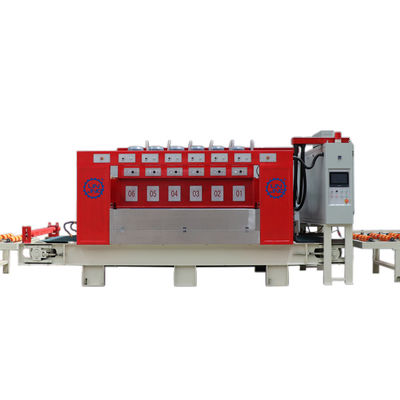

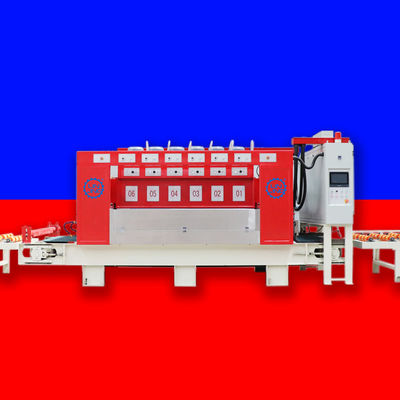

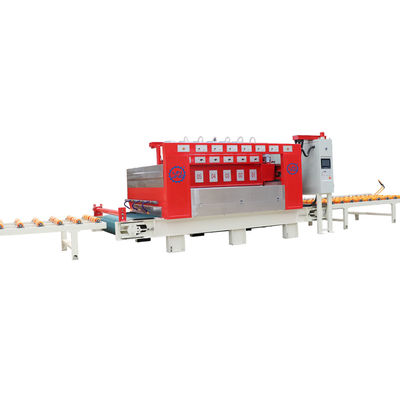

Full-Automatic Bush Hammering Machine

Full automatic Bush Hammering Machine with 6/8-head is your ideal machine to process litchi surface with high production, easy operation and perfect result. The head is adjusted automatically with same depth, lower cost and lower breakage rate. Different size, irregular shape or thin slab with 10mm are all acceptable to process litchi surface.

Product Features:
Full-automatic continuous litchi noodle mill, based on the principle of continuous walking, through the improvement of grinding head and program conversion, becomes a new type of continuous litchi noodle machine. The operation control system adopts PLC terminal control, and the parameter setting is carried out through the LCD touch screen. Grinding and polishing adopts pneumatic control, and its pressure is adjustable within the set value. This litchi noodle machine can automatically identify the thickness of the plate, the processing process is safe, the processing effect is uniform, the plate is not easy to break, and it saves labor.
1. The automatic litchi surface bush hammering machine with 6-heads or 8-heads is your ideal machine to process litchi surface with high production, easy operation and perfect result.
2. The head is adjusted automatically with same depth, lower cost and lower breakage rate.
3. Different size, irregular shape or thin slab with 10mm are all acceptable to process litchi surface.
Product Specifications:

Type	Unit	LXLZ-6	LXLZ-8
Head number	pcs	6	8
Main motor power	kw	5.5	5.5
Total power	kw	36	47
Mill diameter	mm	200	200
Grinding plate width	mm	1200	1200
Grinding plate thickness	mm	10-100	10-100
Beam swing speed	m/min	3-35	3-35
Into the plate velocity	m/min	1-4	1-4
Cooling water pressure	mpa	0.1-0.5	0.1-0.5
Water consumption	m³/h	6	8
Gas supply pressure	mpa	0.8	0.8
Overall dimensions(LWH)	mm	4500×2700×2300	5200×2700×2300
Weight	kg	4000	5500
