800024002500 Full Automatic Flaming Grinding Machine for Granite Quartz Stone Slab

Large Image : 8000*2400*2500 Full Automatic Flaming Grinding Machine for Granite Quartz Stone Slab

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	LINSING

Payment & Shipping Terms:

Price:	$18,000.00/sets 1-2 sets
Packaging Details:	Covered by film wholely and with anti-skid packaging suitable for shipment by container.
Supply Ability:	25 Set/Sets per Month Stone flaming machine

Contact Now

800024002500 Full Automatic Flaming Grinding Machine for Granite Quartz Stone Slab

Description

Applicable Industries:	Other, Stone Industry	Showroom Location:	None
Condition:	New	Type:	Stone Grinding Machine
Use:	Granite Slab	Production Capacity:	High
Voltage:	220&380V/50Hz(According To The Customer)	Power:	6KW
Dimension(LWH):	800024002500	Weight:	2500 Kg
Warranty:	1 Year	Key Selling Points:	High Productivity
Cutting Thickness (max):	150mm	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Marketing Type:	New Product 2021
Warranty Of Core Components:	1 Year	Core Components:	Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC
Product Name:	Stone Flaming Machine	Keyword:	Automatic Flaming Line
Function:	Slab Surface Processing	Control System:	PLC
Feature:	High Effciency, Energy Conservation	Color:	Customised
Max Cutting Length:	3200mm	Work Efficiency:	120-150m/h
Max. Board Width:	1050	No. Of Heads(max):	20
Port:	Xiamen/Shenzhen/Guangzhou/Shanghai/Ningbio

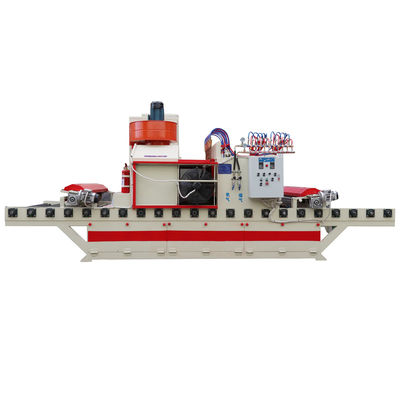

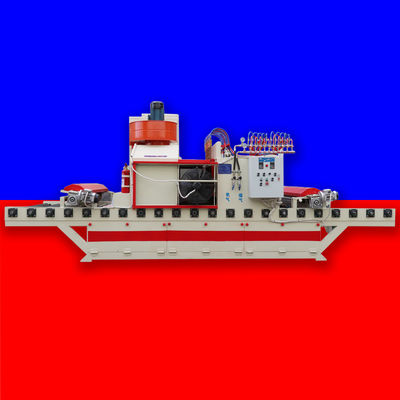

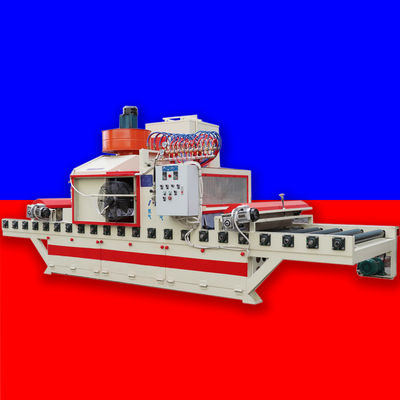

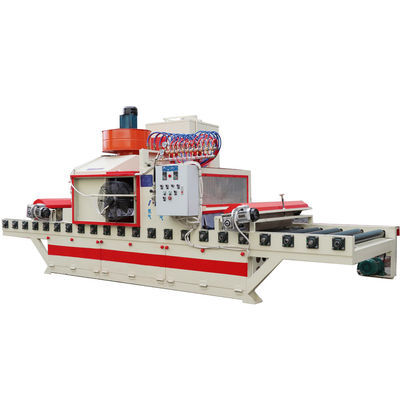

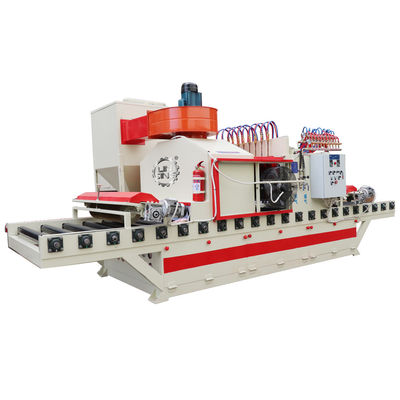

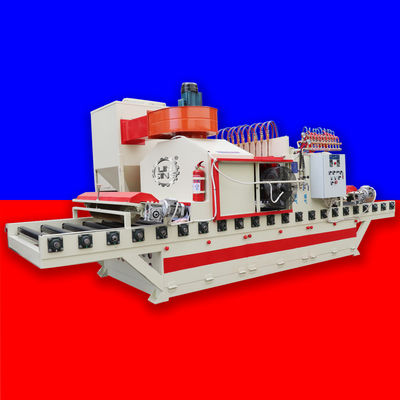

Full-Automatic Stone Flaming Machine

Stone flaming machine moved by chain and moving wheel, the stone is conveyed to the flaming area of the high-speed automatic stone flaming machine automatically. With characteristic of high automation, easy operation, even flaming surface, low energy cost, and high efficiency, the machine can be used to process 350 sqm/hour, which can save the labor intensity dramatically. This machine also has excellent energy saving performance, saving more than 15% energy than other flaming machine.

Product Features:
1.220V and 380V power supply,the working place is not restricted.
2.Cleaning drying system,Keep slab surface cleaning and reduce the gas consumption.
3.The burning nozzle automatic identification of the slab thickness.
4.Acceleration passing function if no slab go through to avoid the gas waste.
5.Backward function without artificial force.
6.Delivery speed,the swing speed can be adjusted according to processing slab material at any time.
7.Roast torque with flame return prevention device,safety and energy saving.
8.Roast torque fit external adjustable switch,flaming adjust with easy.
9.Gear transfer,slab running stability,processing of slab surface is more uniform from appearance.
10.Three flaming return prevention device,ensure use safety.
Product Specification:

Type	Unit	LXHSJ-12	LXHSJ-16	LXHSJ-20
No. Of heads	pcs	12	16	20
Max. Board width	mm	650	850	1050
Max. Board thickness	mm	150	150	150
Motor power	kw	6	6	6
Work efficiency	m2/h	120-150	120-150	120-150
Running noise	Db(a)	50	50	50
Overall dimensions(LWH)	mm	8000×2000×2500	8000×2200×2500	8000×2400×2500
Weight	kg	2100	2300	2500
