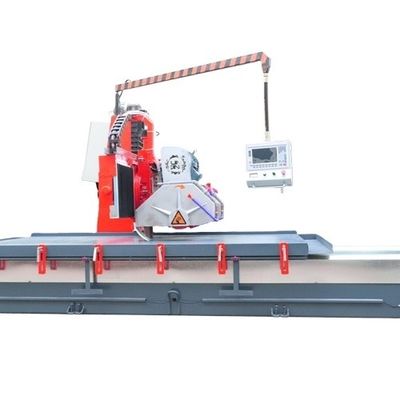

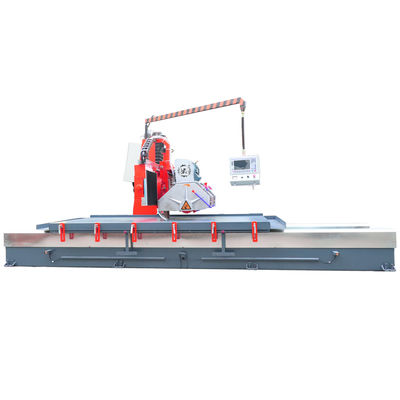

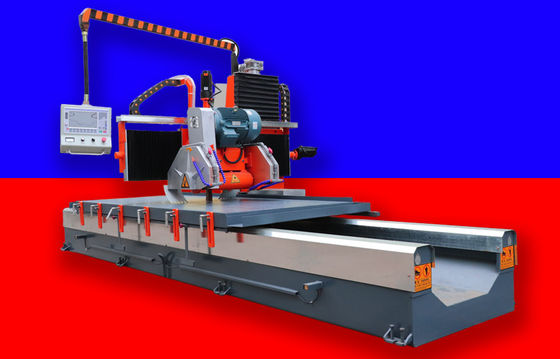

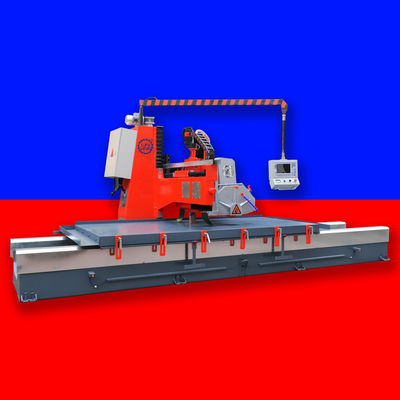

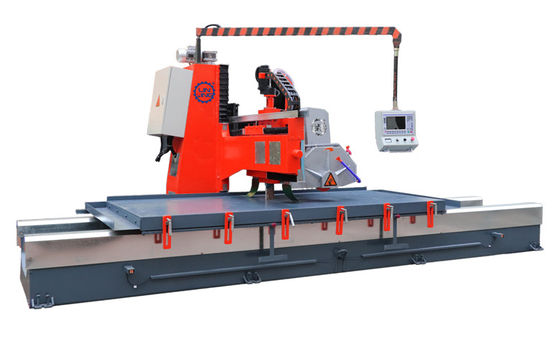

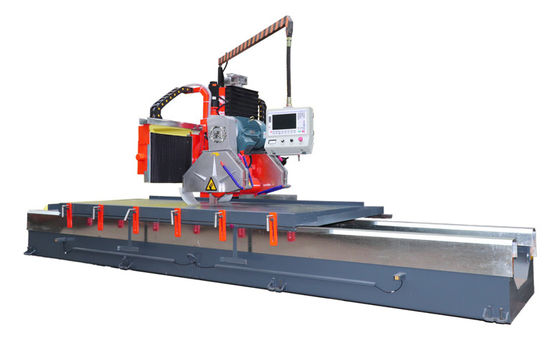

Stone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MM

Stone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MM
Stone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MM Stone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MM Stone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MM Stone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MM Stone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MM Stone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MM

Large Image :  Stone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MM

Product Details:
Place of Origin: Fujian, China
Brand Name: Linsing
Payment & Shipping Terms:
Price: $8,000.00/sets >=1 sets
Packaging Details: waterproof and damageproof standard packaging<br>carton box with logo<br>as the customer's requirement
Supply Ability: 5 Set/Sets per Day
Contact Now

Stone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MM

Description
Applicable Industries: Construction Works , Other Showroom Location: None
Condition: New Type: Stone Polishing Machine
Use: Marble Production Capacity: Cutting Speed: 0-7500MM
Voltage: 220V Power: 15 KW
Dimension(L*W*H): 5000 X 2200 X 2400MM Weight: 4800 Kg
Warranty: 6 Months Key Selling Points: Energy Saving
Cutting Thickness (max): 5mm Machinery Test Report: Provided
Video Outgoing-inspection: Provided Marketing Type: New Product 2020
Warranty Of Core Components: 6 Months Core Components: Motor, Engine, PLC
After-sales Service Provided: Online Support Product Name: Multifunctional Stone Profiling Machine
Function: Profiling Granite Marble, Quartz Feature: High Cutting Efficiency
Usage: Stone Slab Profiling Brand: Linsing
Color: Red Motor: 15 KW
Advantage: Economy MOQ: 1 SET
Port: Xiamen/Shenzhen/Guangzhou/Shanghai/Ningbio

Multifunctional Stone Profiling Machine
The multifunctional stone profiling machine works with double blades and an automatic tracking shape of the model. it is very easy to operate. It is automatically controlled by a microcomputer, specially designed to carry out architectural shapings such as profiles, roman columns, and other diverse shapes on granite and marble.

Product Features:
1. PLC programmable control type, easy to operate.
2. The working platform adopts an oil-immersed seal guide rail.
3. Rack set under the platform, symmetrical force, good rigidity, and long service life.
4. Through optical fiber probe tracking, automatically cut according to the template mold profile.
5. A couple of blades mounted so as to process two kinds of stuff at the same time for higher efficiency.
6. Equipped with precision mechanical parts and Japanese name-brand electric parts, this machine provides high efficiency, stability, and reliability.

Model Unit LXFX-600
Blade diameter mm φ350-600
Main motor power kw 15
Cutting speed mm 0-7500
Max. cutting(L*W*H) mm 3000 x 1200 x 350
Max cutting thickness mm 180
Overall dimensions(L*W*H) mm 5000 x 2200 x 2400
Water Comsuption m³/h 4
Approximate weight Kg 4800
Product Description

Stone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MM 0Stone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MM 1Stone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MM 2Stone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MM 3Stone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MM 4Stone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MM 5

Stone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MM 6Stone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MM 7

Stone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MM 7Stone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MM 9Stone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MM 10Stone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MM 11Stone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MM 12

Linxing products

Stone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MM 13Stone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MM 14

Packaging & Shipping

 Stone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MM 15Stone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MM 16Stone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MM 17

Stone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MM 18
