Economy Stone Gantry Cutting Machine for Red Granite Marble Limestone Cutting

Economy Stone Gantry Cutting Machine for Red Granite Marble Limestone Cutting
Economy Stone Gantry Cutting Machine for Red Granite Marble Limestone Cutting Economy Stone Gantry Cutting Machine for Red Granite Marble Limestone Cutting Economy Stone Gantry Cutting Machine for Red Granite Marble Limestone Cutting Economy Stone Gantry Cutting Machine for Red Granite Marble Limestone Cutting Economy Stone Gantry Cutting Machine for Red Granite Marble Limestone Cutting Economy Stone Gantry Cutting Machine for Red Granite Marble Limestone Cutting

Large Image :  Economy Stone Gantry Cutting Machine for Red Granite Marble Limestone Cutting

Product Details:
Place of Origin: Fujian, China
Brand Name: Linsing
Payment & Shipping Terms:
Price: $18,000.00/sets >=1 sets
Packaging Details: waterproof and damageproof standard packaging<br>carton box with logo<br>as the customer's requirement
Supply Ability: 5 Set/Sets per Day
Contact Now

Economy Stone Gantry Cutting Machine for Red Granite Marble Limestone Cutting

Description
Applicable Industries: Construction Works , Other Showroom Location: None
Condition: New Type: Stone Cutting Machine
Use: Granite Production Capacity: Water Consumption: 6m3/h
Voltage: 380V Power: 30kw
Dimension(L*W*H): 6600*600*4800mm Weight: 9000 Kg
Warranty: 6 Months Key Selling Points: Energy Saving
Cutting Thickness (max): 9mm Machinery Test Report: Provided
Video Outgoing-inspection: Provided Marketing Type: New Product 2020
Warranty Of Core Components: 6 Months Core Components: Motor, Engine, PLC
After-sales Service Provided: Online Support Product Name: Gantry Cutting Machine For Block Cutting
Function: Cutting Granite Marble, Quartz Keyword: Dimond Cutter Machine
Feature: High Cutting Efficiency Usage: Stone Slab Cutting
Brand: Linsing Color: Red
Motor: 30kw Advantage: Economy
Port: Xiamen/Shenzhen/Guangzhou/Shanghai/Ningbio

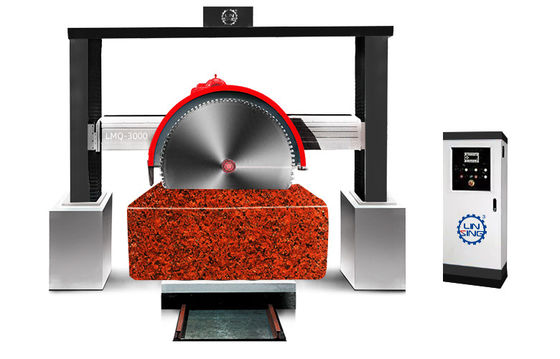

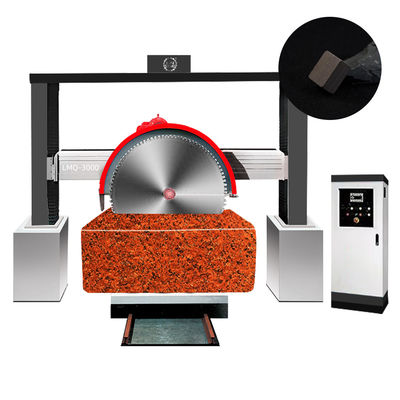

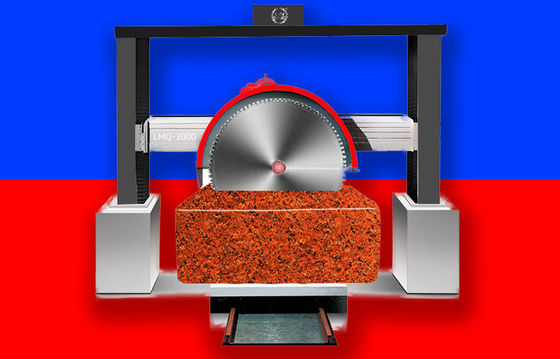

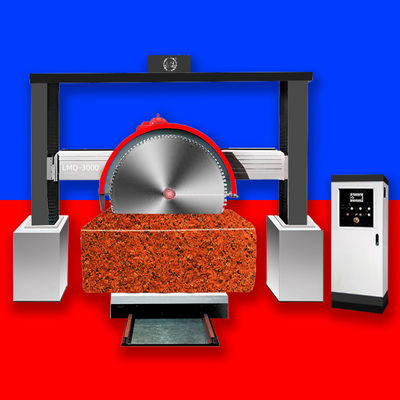

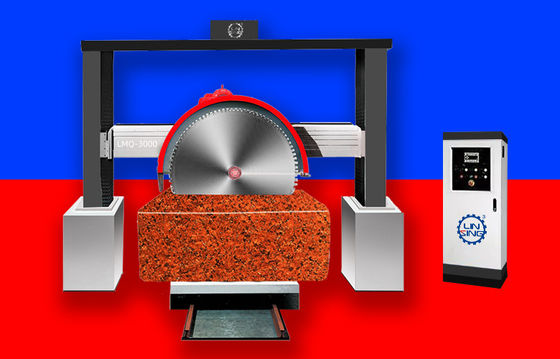

Gantry Cutting Machine For Block Cutting
Gantry cutting machines are mainly used for cutting marble, granite, bluestone, tombstone and so on.

Product Features:
This type of sawing machine (gantry saw machine) is composed of beams and a composite drag board system, with the method of dragging the plate up and down movement to realize longitudinal feed, dragging the plate beam yan about the mo

tion to realize transverse feeding, the main motor drives the saws for cutting stone material, the type of disk saw machine structure is simple, compact, low cost, high efficiency, wide applicable scope, is the most common stone machine, Therefore, it has been widely used in stone industry.
1. Crossbeam lift structure(down), V-shape that can achieve a precise and stable cutting.
2.  main spindle box moves side to side (x-axis) along the cross beam.
3. Imported frequency converter is equipped and step-less speed adjusting is available.
4. Mechanotronic design &PLC controlling system for an easy and user-friendly operation.
5. Workbench can rotate 360°.
Product specifications:

Model Unit LXLMQ-2200 LXLMQ-2500 LXLMQ-3000
Max. diameter of blade mm 2200 2500 3000
Max. No. of blades pc 3 1 1
Recommended Blade Combination mm 2200 1600  940 2500 3000
Recommend saw blade thickness mm 6.5/7.2/8.0 8/8.5/9.0 8.0/9.0/9.5
Main motor power KW 30 30 37
Table dimensions(L*W) mm 3200*2000 3000*2000 2500*2000
Max. cutting size(L*W*H) mm 3200*2000*950 3000*2000*1100 2500*2000*1350
Overall dimensions(L*W*H) mm 6600*600*4800 6600*6000*4800 7000*4700*6000
Water consumption m3/h 6 6 6
Approximate weight Kg 9000 9500 9700
Product Description

Economy Stone Gantry Cutting Machine for Red Granite Marble Limestone Cutting 0Economy Stone Gantry Cutting Machine for Red Granite Marble Limestone Cutting 1Economy Stone Gantry Cutting Machine for Red Granite Marble Limestone Cutting 2Economy Stone Gantry Cutting Machine for Red Granite Marble Limestone Cutting 3Economy Stone Gantry Cutting Machine for Red Granite Marble Limestone Cutting 4Economy Stone Gantry Cutting Machine for Red Granite Marble Limestone Cutting 5Economy Stone Gantry Cutting Machine for Red Granite Marble Limestone Cutting 6Economy Stone Gantry Cutting Machine for Red Granite Marble Limestone Cutting 7

Economy Stone Gantry Cutting Machine for Red Granite Marble Limestone Cutting 8Economy Stone Gantry Cutting Machine for Red Granite Marble Limestone Cutting 9

Economy Stone Gantry Cutting Machine for Red Granite Marble Limestone Cutting 8Economy Stone Gantry Cutting Machine for Red Granite Marble Limestone Cutting 9Economy Stone Gantry Cutting Machine for Red Granite Marble Limestone Cutting 12Economy Stone Gantry Cutting Machine for Red Granite Marble Limestone Cutting 13Economy Stone Gantry Cutting Machine for Red Granite Marble Limestone Cutting 14Economy Stone Gantry Cutting Machine for Red Granite Marble Limestone Cutting 15

Linxing products

Economy Stone Gantry Cutting Machine for Red Granite Marble Limestone Cutting 16Economy Stone Gantry Cutting Machine for Red Granite Marble Limestone Cutting 17

Economy Stone Gantry Cutting Machine for Red Granite Marble Limestone Cutting 18
