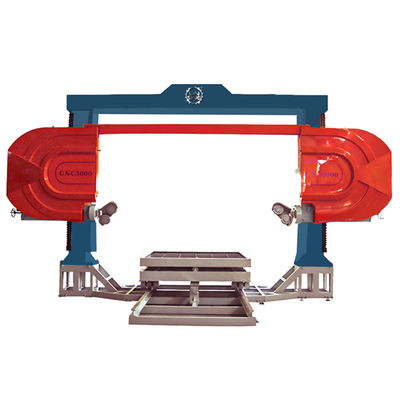

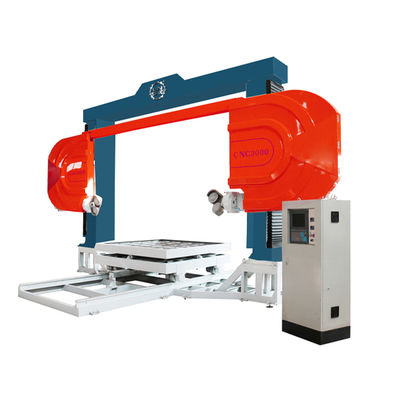

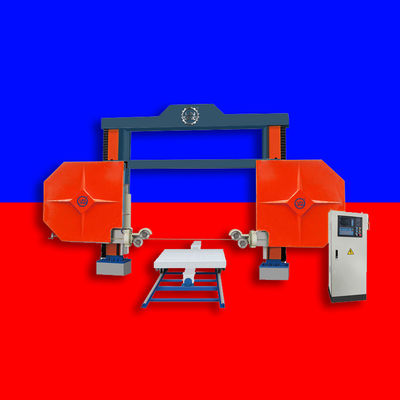

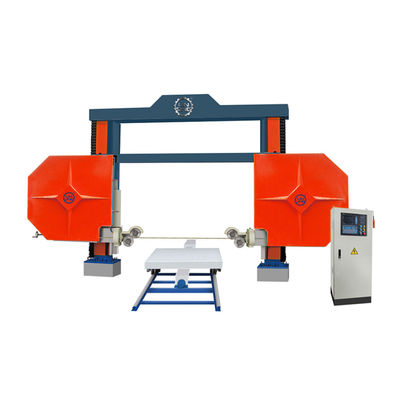

Stone Industry 6800 kg Automatic CNC Diamond Wire Saw For Stone Profiling Squarying

Large Image : Stone Industry 6800 kg Automatic CNC Diamond Wire Saw For Stone Profiling Squarying

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	LINSING

Payment & Shipping Terms:

Price:	$36,000.00/sets 1-2 sets
Packaging Details:	Plastic film, wooden box or wooden frame.
Supply Ability:	30 Set/Sets per Month Wire saw machine

Contact Now

Stone Industry 6800 kg Automatic CNC Diamond Wire Saw For Stone Profiling Squarying

Description

Applicable Industries:	Stone Industry	Showroom Location:	None
Condition:	New	Type:	Stone Cutting Machine
Use:	For Profiling And Squaring	Production Capacity:	High
Voltage:	380V, 50 Hz.	Power:	11kw
Dimension(LWH):	630075004000	Weight:	6800 Kg
Warranty:	1 Year	Key Selling Points:	CNC
Cutting Thickness (max):	1500	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Marketing Type:	High Quality With Cheap Price
Warranty Of Core Components:	1 Year	Core Components:	Pressure Vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC
Product Name:	CNC Wire Saw Machine	Keyword:	Diamond Wire Saw For Profiling
Usage:	Wet Use	Application:	Stone Marble Granite Quartz Sandstone
Control System:	CNC Control	After-sales Service Provided:	Online Support
Feature:	High Efficiency Low Cost	Color:	Customer Needing
Max Cutting Length:	6300mm	Driving Motor:	11kw
Port:	Shanghai, Shenzhen, Ningbo, Xiamen, Etc

Numerical Control CNC Wire Saw

CNC system makes the man-machine interface easy and flexible Diverse, complex.The flywheel elevates and lowers along these guide rails and the linear cutting speed can be adjusted according to different cutting requirements, which greatly improves the cutting accuracy.The protective cover is waterproof and highly durable.

Product Features:
1. Separate guide rail system, flywheel through the rail to rise and fall.
2. Sable working of flywheel ensures he service life of the machine.
3. Sable tension of flywheel and the constant flexible ensure the accuracy of cutting.
4. CNC man-machine interface makes the operation easier.
5. The machine has the cutting diversity to do complex processes and 2 faces different size process.

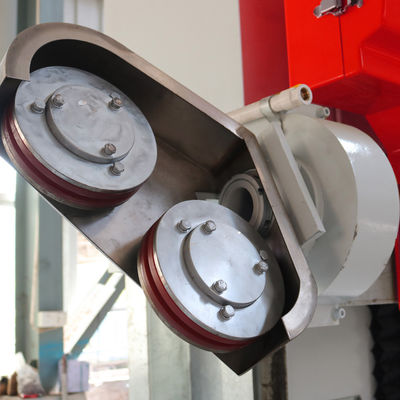

6. Four guide wheels are equipped with rubber ring, which greatly improves the accuracy of cutting. According to different cutting requirements to adjust the line cutting speed. Protective cover is waterproof and durable.
7. The magnetic sliced ensure slicing precision gate.
8. Vertical movement of machine head is driven by hydraulic system, and the stroke is adjustable.
9. Worktable can tilt 0-90°, and rotate 0-360°for special processing.
Product Specifications:

Type	Unit	LXSJ-2000	LXSJ-2500	LXSJ-3000
Max. process size	m	321.5	32.51.5	331.5
Working table size	mm	2500*1300	2500*1300	2500*1300
Wire length	mm	13000	14000	15000
Wire diameter	mm	7.6-11	7.6-11	7.6-11
Cutting linear speed	m/s	25-45	25-45	25-45

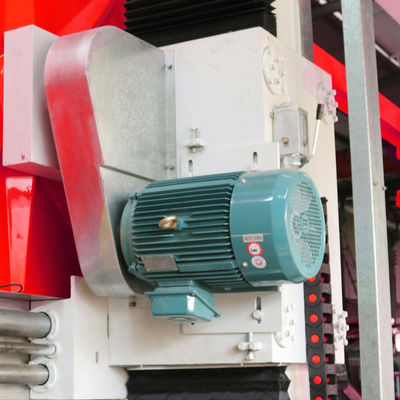

Main motor power	Kw	11	11	11
Water consumption	m³/h	2	3	4
Overall dimension	m	6.36.54	6.374	6.37.54
Approximate weight	kg	5300	6200	6800
