Bridge Granite Cutting Machine For Stone Thick Plate Block Cutting Mable Cutter Saw

Bridge Granite Cutting Machine For Stone Thick Plate Block Cutting Mable Cutter Saw
Bridge Granite Cutting Machine For Stone Thick Plate Block Cutting Mable Cutter Saw Bridge Granite Cutting Machine For Stone Thick Plate Block Cutting Mable Cutter Saw Bridge Granite Cutting Machine For Stone Thick Plate Block Cutting Mable Cutter Saw Bridge Granite Cutting Machine For Stone Thick Plate Block Cutting Mable Cutter Saw Bridge Granite Cutting Machine For Stone Thick Plate Block Cutting Mable Cutter Saw Bridge Granite Cutting Machine For Stone Thick Plate Block Cutting Mable Cutter Saw

Large Image :  Bridge Granite Cutting Machine For Stone Thick Plate Block Cutting Mable Cutter Saw

Product Details:
Place of Origin: Jiangxi, China
Brand Name: LINSING
Payment & Shipping Terms:
Price: $19,000.00/sets 1-2 sets
Packaging Details: Plastic film, wooden box and wooden frame
Supply Ability: 30 Set/Sets per Month Bridge saw machine
Contact Now

Bridge Granite Cutting Machine For Stone Thick Plate Block Cutting Mable Cutter Saw

Description
Applicable Industries: Stone Industry Showroom Location: None
Condition: New Type: Bridge Saw
Use: For Tombstone, Thick Plate, Slab Production Capacity: High Efficiency
Voltage: 380V, 50 Hz. Power: 18.5KW
Dimension(L*W*H): Max.7000*4800*5500mm Weight: 7500 Kg
Warranty: 1 Year Key Selling Points: High-accuracy
Cutting Thickness (max): 450mm Machinery Test Report: Provided
Video Outgoing-inspection: Provided Marketing Type: High Quality With Cheap Price
Warranty Of Core Components: 1 Year Core Components: Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC
Product Name: Bridge Saw Machine Keyword: Stone Block Cutting Machine
Function: Stone Block Cutting Usage: Granite Marble Stone Processing
Control System: PLC(imported Brand) Feature: High Cutting Efficiency
Color: Customer Needing Max. Cutting Width: 2000mm
Max. Cutting Length: 3200mm Blade Diameter(max): 2200mm
Port: Shanghai, Shenzhen, Ningbo, Xiamen, Etc

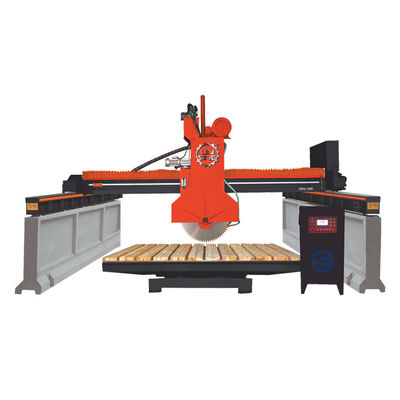

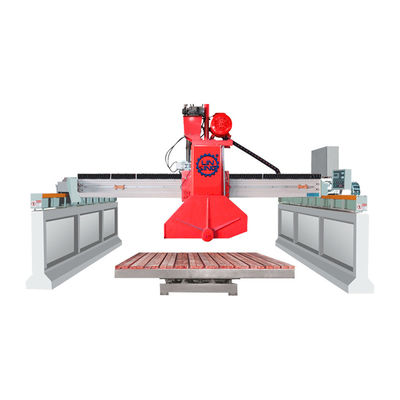

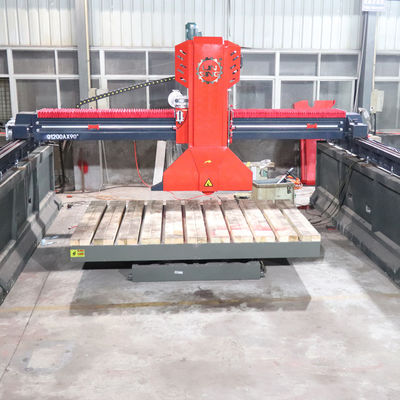

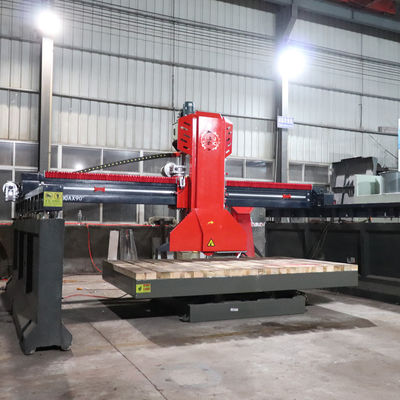

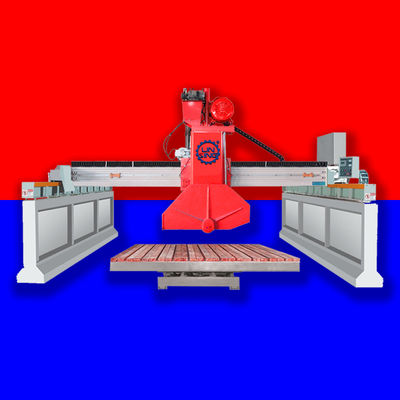

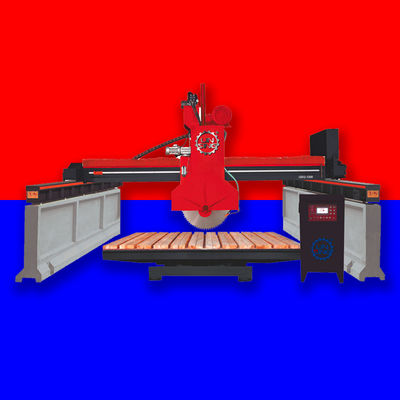

Bridge Cutting Machine For Block Cutting

Bridge cutting machine is ideal equipment for processing middle size stone blocks, such as tombstone, stone material handicraft, curb stone.

Product Features:

1: Adopts large span bridge stucture. The girder beam and guide rail are sealed with oil.
2: Automatic shift sharding. Feeding system adopts imported frequency converter, realize stepless speed cutting.
3: Equipped with a 360-degree rotating table.
4: Accurate positioning and high processing efficiency.

Product Specifications:

Model Unit PLC-1200 PLC-1600 PLC-1800 PLC-2200
Beam length(optional)  mm 6500 6200 6500 7000
Guide pillar diameter mm Φ140/180 Φ140/180 Φ140/180 Φ140/180
Max.blade diameter mm Φ1200 Φ1600 Φ1800 Φ2200
Worktable size mm 3000*2000 3000*2000 3000*2000 3000*2000
Worktable rotation range  n° 0-90° 0-90° 0-90° 0-90°
Max.vertical stroke  mm 820 950 950 1150
Water consumption  m³/h  4 5 5 6
Power of main motor kw 22 22 30 30
Total power  kw 27.2 27.2 38.2 38.2
Dimension(L×W×H) m 6.4*4.8*4.4 6.2*4.8*5.1 6.5*4.8*5.3  7.0*4.8*5.5
Weight  kg 6100 7100 7300 7500

Bridge Granite Cutting Machine For Stone Thick Plate Block Cutting Mable Cutter Saw 0Bridge Granite Cutting Machine For Stone Thick Plate Block Cutting Mable Cutter Saw 1Bridge Granite Cutting Machine For Stone Thick Plate Block Cutting Mable Cutter Saw 2Bridge Granite Cutting Machine For Stone Thick Plate Block Cutting Mable Cutter Saw 3Bridge Granite Cutting Machine For Stone Thick Plate Block Cutting Mable Cutter Saw 4Bridge Granite Cutting Machine For Stone Thick Plate Block Cutting Mable Cutter Saw 5Bridge Granite Cutting Machine For Stone Thick Plate Block Cutting Mable Cutter Saw 6Bridge Granite Cutting Machine For Stone Thick Plate Block Cutting Mable Cutter Saw 7Bridge Granite Cutting Machine For Stone Thick Plate Block Cutting Mable Cutter Saw 8Bridge Granite Cutting Machine For Stone Thick Plate Block Cutting Mable Cutter Saw 9Bridge Granite Cutting Machine For Stone Thick Plate Block Cutting Mable Cutter Saw 10Bridge Granite Cutting Machine For Stone Thick Plate Block Cutting Mable Cutter Saw 11
