Bridge Saw Machine for Stone Slab Cutting of Granite Marble Quartz Dekton Porcelain

Large Image : Bridge Saw Machine for Stone Slab Cutting of Granite Marble Quartz Dekton Porcelain

Product Details:

Place of Origin:	Fujian, China
Brand Name:	Linsing

Payment & Shipping Terms:

Price:	$26,000.00/sets 1-49 sets
Packaging Details:	1) Covered by plastic film wholely.<br>2) Packed in plywood cartons for spare parts.<br>3) Locked with steel ropes for anti-skid in container suitable for long-distance shipment.<br>4) Port: Fuzhou, China or Xiamen, China
Supply Ability:	5 Set/Sets per Day

Contact Now

Bridge Saw Machine for Stone Slab Cutting of Granite Marble Quartz Dekton Porcelain

Description

Applicable Industries:	Construction Works , Other	Showroom Location:	None
Condition:	New	Type:	Mono-block Bridge Saw Machine
Use:	Granite	Production Capacity:	Max. Tutting Size: 32001800130mm
Voltage:	380v	Power:	15kw
Dimension(LWH):	580030002900mm	Weight:	3000 Kg
Warranty:	6 Months	Key Selling Points:	Energy Saving
Cutting Thickness (max):	4mm	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Marketing Type:	New Product 2022
Warranty Of Core Components:	6 Months	Core Components:	Motor, Engine, PLC
After-sales Service Provided:	Online Support	Product Name:	Mono-block Bridge Saw Machine
Function:	Cutting Granite Block	Feature:	High Working Efficiency
Usage:	Stone Slab Cutting	Brand:	Linsing
Color:	Red	Motor:	15kw
Advantage:	Economy	MOQ:	1 SET
Port:	Xiamen/Shenzhen/Guangzhou/Shanghai/Ningbio

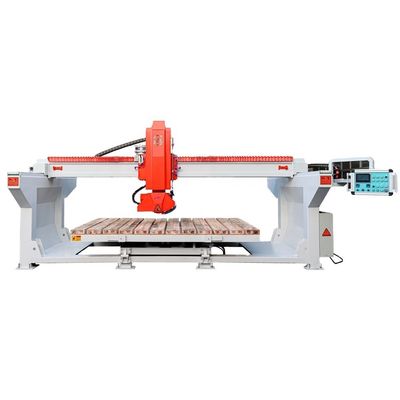

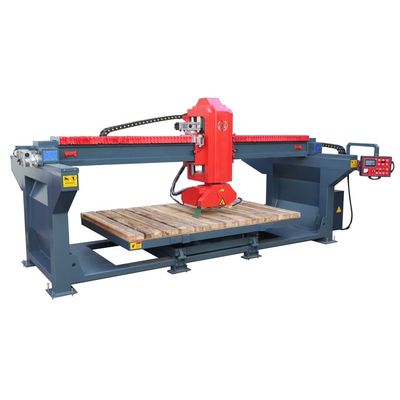

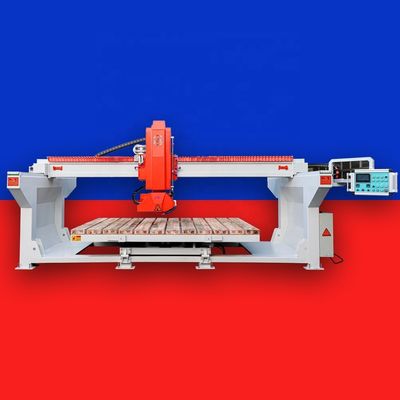

Mono-block Bridge Saw Machine
LXMBM-500/600 Monoblock Bridge Cutting machine: An updated bridge cutting machine, equipped with Italy CNC system ESA and 3-axis interpolation, is applicable for cutting all kinds of stone slabs to size, such as granite, marble, quartzite, and artificial stone slab, etc., it is easy for container loading and machine installation.

Product Features:
1. Mono-block machine, easy for container loading and machine installation.

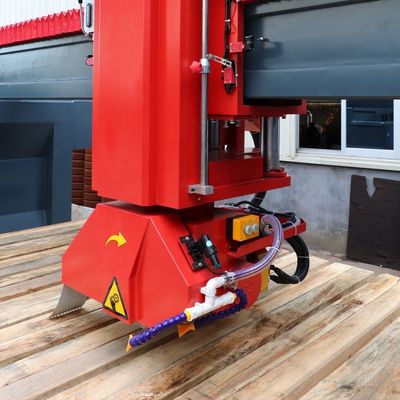

2. Cutting head uses the same structure as Italy's 5-axis laser bridge cutting machine, more reasonable and stable.
3. Blade can rotate 90 degrees and tilt 45 degrees while the worktable can rotate 360 degrees and tilt 85 degrees, easy for cutting direction changing and slab loading.

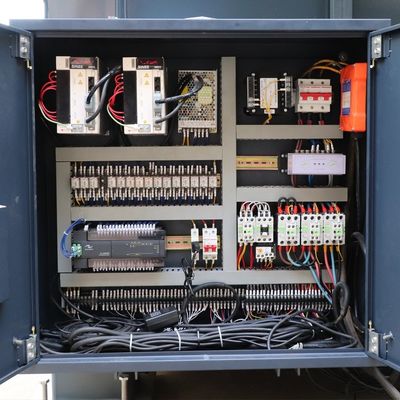

4. The main electrical components are well-known international brands: Panasonic PLC and Inverter, Fuji contactor.
5. Transverse and longitudinal magnetic grids are used to ensure the accuracy and stability of the equipment.
6. Cross beams use the high strength of the castings, avoiding deformation after long-term use.
7. Host walking gear row with high precision, cooperate oil-immersed guide transmission, less resistance, and high accuracy realized.

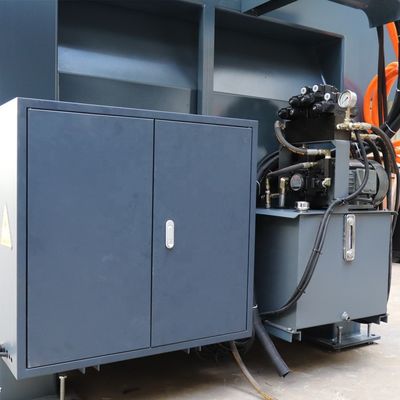

8. Vertical movement of the machine head is driven by a hydraulic system, and the stroke is adjustable.
9. SIEMENS or indigenous main motor, 15/18.5KW.
10. Adopts encoder for forward & backward slicing.
11. Top-quality laser device with longer life and brightness.

Product Specifications:

Model	Unit	YTQQ-500	YTQQ-600
Max. diameter of blade	mm	500	600
Main motor power	KW	15/18.5	15/18.5
Cutting head rotating degree	n°	90°	90°
Table dimensions(L x W)	mm	3200*1800	3200*1800
Table tilting degree	n°	0-85°	0-85°
Max. tutting size(L x W x H)	mm	32001800130	32001800180
Overall dimensions(L x W x H)	mm	580030002900	580030003000

Bridge Saw Machine for Stone Slab Cutting of Granite Marble Quartz Dekton Porcelain 0

Bridge Saw Machine for Stone Slab Cutting of Granite Marble Quartz Dekton Porcelain 9

Bridge Saw Machine for Stone Slab Cutting of Granite Marble Quartz Dekton Porcelain 10

Bridge Saw Machine for Stone Slab Cutting of Granite Marble Quartz Dekton Porcelain 12

Contact Details

Jiangxi Linxing Diamond Tools Co., Ltd.

Contact Person: Mr. info

Tel: +8615216016969
