LX-350 Infrared Bridge Cutting Machine with 3.5m3/h Water Consumption and 13KW Motor

LX-350 Infrared Bridge Cutting Machine with 3.5m3/h Water Consumption and 13KW Motor
LX-350 Infrared Bridge Cutting Machine with 3.5m3/h Water Consumption and 13KW Motor LX-350 Infrared Bridge Cutting Machine with 3.5m3/h Water Consumption and 13KW Motor LX-350 Infrared Bridge Cutting Machine with 3.5m3/h Water Consumption and 13KW Motor LX-350 Infrared Bridge Cutting Machine with 3.5m3/h Water Consumption and 13KW Motor LX-350 Infrared Bridge Cutting Machine with 3.5m3/h Water Consumption and 13KW Motor

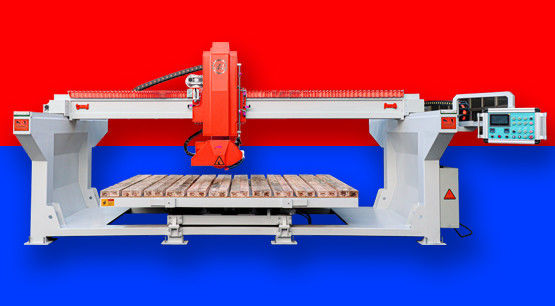

Large Image :  LX-350 Infrared Bridge Cutting Machine with 3.5m3/h Water Consumption and 13KW Motor

Product Details:
Place of Origin: Jiangxi, China
Brand Name: Linsing
Payment & Shipping Terms:
Price: $14,000.00/sets 1-4 sets
Packaging Details: Plastic film, wooden case, etc
Supply Ability: 20 Set/Sets per Month Stone block cuting machine
Contact Now

LX-350 Infrared Bridge Cutting Machine with 3.5m3/h Water Consumption and 13KW Motor

Description
Applicable Industries: Building Material Shops, Manufacturing Plant, Retail, Construction Works , Stone Industry Showroom Location: Egypt, Canada, Turkey, United Kingdom, United States, France, Viet Nam, Philippines, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangla
Condition: New Type: Infrared Bridge Cutting Machine
Use: Granite Cutting Production Capacity: High Speed
Voltage: 380V/50Hz Power: 13KW
Dimension(L*W*H): 5300x3000x2500mm Weight: 3600 Kg
Warranty: 1 Year Key Selling Points: High-accuracy
Cutting Thickness (max): 10mm Machinery Test Report: Not Available
Video Outgoing-inspection: Provided Marketing Type: Hot Product 2020
Warranty Of Core Components: 1 Year Core Components: Motor, PLC
Product Name: Infrared Bridge Cutting Machine After-sales Service Provided: Online Support
Application: Granite Cutting Usage: Stone Cutting
Control System: PLC(imported Brand) Color: Red Or Customized
Feature: High Cutting Efficiency Max Blade Diameter: 350/400/500mm
Motor: 13KW Water Consumption: 3.5m3/h
Port: Shanghai, Shenzhen, Ningbo, Xiamen, Etc

LX- 350 Infrared Bridge Cutting Machine Mono-block bridge saw machine 3 axis hot sell

Products features:

1, It adopts computer control, touch operation interface.

2, The main control components are international famous brand components such as Xiamen Eagle main motor, Mitsubishi converter, Inovance PLC and touch screen, OMRON relay, Taiwan Youshun solenoid valve, NSK bearing, etc.

3, The cross beam adopts oil-immersed track, stepless speed regulation for horizontal movement, longitudinal use linear guides and high-precision magnetic count to ensure the precision movement.

4, Saw blade D350-400mm rotation 0-90° and tilting 0-45° suitable to cut 1-3cm slabs, table 0-85 ° tilt for loading slab.



Product specifications:

TYPE

Unit

SCT-350

Blade diameter

mm

350-400

Max.working dimensions (LxWxH)

mm

3200x2000x70

Worktable dimensions (LxW)

mm

3200x2000

Blade rotation degree

n°

0° - 90°

Blade tilting degree

n°

0° - 45°

Worktable tilting degree

n°

0° - 85°

Main motor power

kW

13

Water consumption

M³/h

3.5

Dimension (LxWxH)

mm

5300x3000x2500

Weight

kg

3600
