Stone Processing Machine SCT-600MM Marble and Granite Tile Cutting with 18.5kw Main Motor

Stone Processing Machine SCT-600MM Marble and Granite Tile Cutting with 18.5kw Main Motor
Stone Processing Machine SCT-600MM Marble and Granite Tile Cutting with 18.5kw Main Motor Stone Processing Machine SCT-600MM Marble and Granite Tile Cutting with 18.5kw Main Motor Stone Processing Machine SCT-600MM Marble and Granite Tile Cutting with 18.5kw Main Motor Stone Processing Machine SCT-600MM Marble and Granite Tile Cutting with 18.5kw Main Motor Stone Processing Machine SCT-600MM Marble and Granite Tile Cutting with 18.5kw Main Motor Stone Processing Machine SCT-600MM Marble and Granite Tile Cutting with 18.5kw Main Motor

Large Image :  Stone Processing Machine SCT-600MM Marble and Granite Tile Cutting with 18.5kw Main Motor

Product Details:
Place of Origin: shangrao
Brand Name: Linsing
Payment & Shipping Terms:
Price: $16,000.00/pieces 1-1 pieces
Packaging Details: According to normal packing
Supply Ability: 50 Unit/Units per Month
Contact Now

Stone Processing Machine SCT-600MM Marble and Granite Tile Cutting with 18.5kw Main Motor

Description
Applicable Industries: Stone Processing Machine Showroom Location: None
Condition: New Type: Infrared Bridge Cutting Machine
Use: Granite Marble Stone Voltage: 380v
Power: 18.5kw Dimension(L*W*H): 6000x4800x3200
Weight: 4200 Kg Warranty: Warranty
Key Selling Points: High-accuracy Cutting Thickness (max): 180mm
Machinery Test Report: Not Available Video Outgoing-inspection: Not Available
Marketing Type: Hot Product 2019 Warranty Of Core Components: 1 Year
Core Components: Motor, Bearing, Engine, PLC, Converter, Simon Button, OMRON RELAY Diameter Of Saw Blade: D600mm
Max Working Dimension(LXWX H): 3200x2000x180MM Water Consumption: 4m3
Dimension (LXWXH): 6000X4800X3200MM Power Of Main Motor: 18.5kw
Worktable Tilting Degree: 0-85 Payment Term: 50% Deposit Before Production, The Balance Before Shipping
Delivery Time: 30 Days Worktable Rotating Degree: 0-360
Worktable Dimensions: 3200x3200 Port: China All Sea Port

Product Description
SCT-600 Infrared Bridge Cutting Machine

1, Itadopts servo system, computer control, touch operation interface, with wireless remote control.
2, The main control components are international famous brand components such as Xiamen Eagle
main motor, Mitsubishi converter, Inovance PLC and touch screen, German original encoder and
Simon button, OMRON relay, Taiwan Youshun solenoid valve, NSK bearing, etc.
3, The cross beam adopts oil-immersed track, stepless speed regulation for horizontal movement,
longitudinal use linear guides and high-precision magnetic count to ensure the cutting precision
movement.
4, Saw blade D350-600mm suitable to cut 1-5cm slabs, table 360 degrees rotation each 45 degrees
automatic positioning, 0-85 degree tilt for loading slab,
5, Main motor frequency converter, steel/concrete frame and operation system language are
optional items which available upon request.
Stone Processing Machine SCT-600MM Marble and Granite Tile Cutting with 18.5kw Main Motor 0
Circuit Breaker
 Schneider
Limit Switch
OMRON
Moter Driver
ESA+PEGAUS
CPU
ESA+PEGAUS
Five Axis Serve Motor
ESA
Hydraulic Moter
China

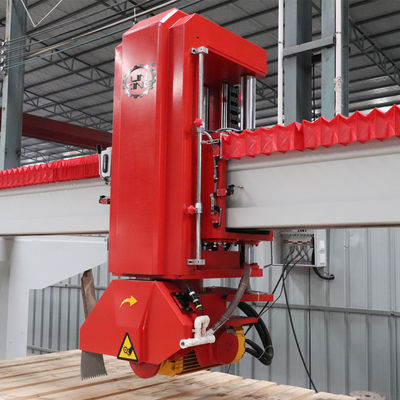

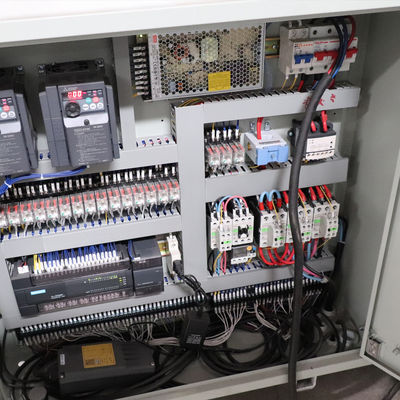

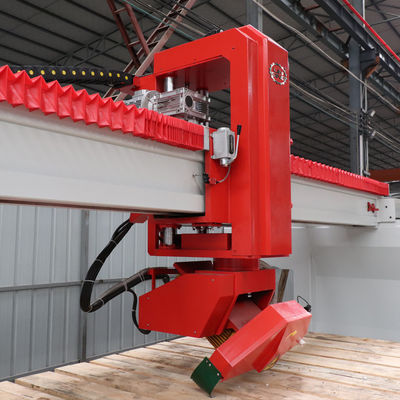

Detailed Images
Stone Processing Machine SCT-600MM Marble and Granite Tile Cutting with 18.5kw Main Motor 1
Size Information
Stone Processing Machine SCT-600MM Marble and Granite Tile Cutting with 18.5kw Main Motor 2
Packing&Shipping
Stone Processing Machine SCT-600MM Marble and Granite Tile Cutting with 18.5kw Main Motor 3
Stone Processing Machine SCT-600MM Marble and Granite Tile Cutting with 18.5kw Main Motor 4
Company Introduction
LINXING factory is located in Tianfanjie which near Jingdezhen, Jiangxi which is well-known as Ceramic capital. The company covers an area of 20,000 sqm with more than 200 employees. The company has 10 technical engineers, with increasing funds of R&D,the experienced engineers have worked out unique formula for Granite and marble cutting conditions. We could provide with stable performance, competitive price and fast cutting quality, the company has earned very good reputations among customers at home and abroad, especially our diamond segments have been able to keep 40% market share in domestic market.
The company has a completely scientific quality management system, we look forward to your sincere cooperation.
Stone Processing Machine SCT-600MM Marble and Granite Tile Cutting with 18.5kw Main Motor 5
Stone Processing Machine SCT-600MM Marble and Granite Tile Cutting with 18.5kw Main Motor 6
Stone Processing Machine SCT-600MM Marble and Granite Tile Cutting with 18.5kw Main Motor 7

Our Services

Quality makes achievements, service creats future!
Exhibition
Stone Processing Machine SCT-600MM Marble and Granite Tile Cutting with 18.5kw Main Motor 8
Stone Processing Machine SCT-600MM Marble and Granite Tile Cutting with 18.5kw Main Motor 9
Stone Processing Machine SCT-600MM Marble and Granite Tile Cutting with 18.5kw Main Motor 8
FAQ
Q1:Are you a factory or trading company?
A:We are factory. Located at Tianfanjie industry, Poyang county, Jiangxi Province.

Q2:How is your product quality?
A. We have strict quality control system . We guarantee our products quality.

Q3:What you will provide to us when your products have warranty?
A:Please give us detailed report,which including warranty picture, and start to use time, how long, problem.
We will try to find a way to solve those problem.If it's our problem and there are no way to solve then we can make compensation..
Q4:Do you offer free sample?
Normally we do not offer free sample, but we guaranty our product's quality and try best to consider the suitability of application per market.
