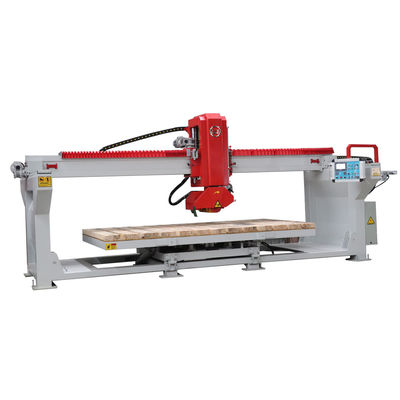

Powerful Infrared Bridge Stone Block Cutting Machine SCT-1200 MM 0-90 Degree Rotation

Large Image : Powerful Infrared Bridge Stone Block Cutting Machine SCT-1200 MM 0-90 Degree Rotation

Product Details:

Place of Origin:	shangrao
Brand Name:	Linsing

Payment & Shipping Terms:

Price:	$17,000.00/pieces 1-1 pieces
Packaging Details:	According to normal packing
Supply Ability:	50 Unit/Units per Month

Contact Now

Powerful Infrared Bridge Stone Block Cutting Machine SCT-1200 MM 0-90 Degree Rotation

Description

Applicable Industries:	Stone Processing Machine	Showroom Location:	None
Condition:	New	Type:	Infrared Bridge Cutting Machine
Use:	Granite Marble Stone	Voltage:	380v
Power:	22kw	Dimension(LWH):	6400x4800x4500
Weight:	6100 Kg	Warranty:	Warranty
Key Selling Points:	High-accuracy	Cutting Thickness (max):	3000x1500x450
Machinery Test Report:	Not Available	Video Outgoing-inspection:	Not Available
Marketing Type:	Hot Product 2019	Warranty Of Core Components:	1 Year
Core Components:	Motor, Bearing, Engine, PLC, Converter, Simon Button, OMRON RELAY	Diameter Of Saw Blade:	D1200mm
Max Working Dimension(LXWX H):	3000x1500x450MM	Water Consumption:	4m3
Dimension (LXWXH):	6400X4800X4500MM	Max.lifting Weight By Sunction Cups:	200kg
Power Of Main Motor:	22kw	Power Of Cutter Frame Motor:	2kw
Working Table Rotation:	0-90	Payment Term:	50% Deposit Before Production, The Balance Before Shipping
Delivery Time:	30 Days	Port:	China All Sea Port

Product Description

SCT-CNC-500 5 Axis bridge cutting machine

1.It adopts computer control ,touch operation interface, with wireless remote control, is an ideal
machine for processing curb stones, tombstones and other craft rectangular thick materials and
polygonal thick materials, especially suitable for the users who need to process with high-value,
high precision and high efficiency.

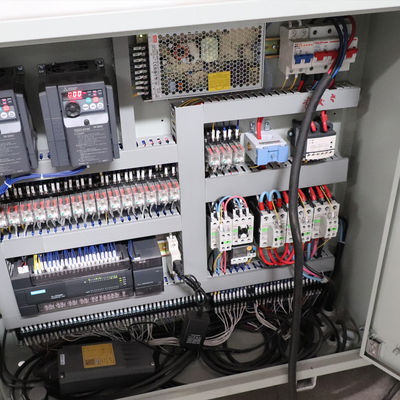

2.The main control components are international famous brand components such as Xiamen Eagle
main motor,Mitsubishi converter,Inovance PLC and touch screen,German original encoder and
Simon button, OMRON relay, Taiwan Youshun solenoid valve, NSK bearing,etc.
3. It adopts bridge structure, the cross beam and side beams adopt sealed oil-immersed guide rails,
encoder realizes precise slicing,hydraulic lifting system,worktable automatically rotates0-90°.
4. Main motor frequency converter,main motor bigger power, working table other rotation degree,
steel frame and operation system language are available upon customer requires.

Circuit Breaker	Schneider
Limit Switch	OMRON
Moter Driver	ESA+PEGAUS
CPU	ESA+PEGAUS
Five Axis Serve Motor	ESA
Hydraulic Moter	China

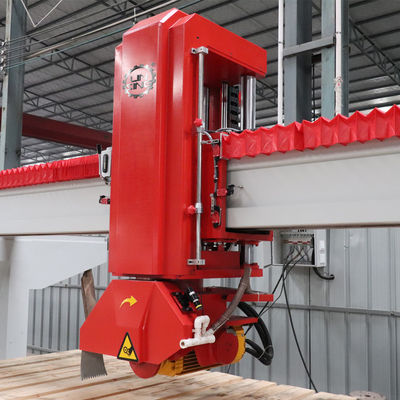

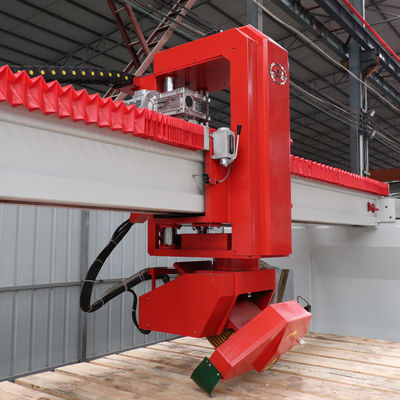

Detailed Images

Size Information

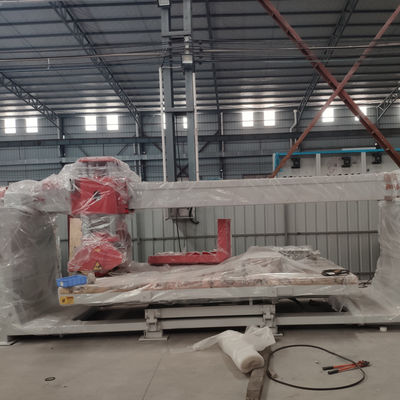

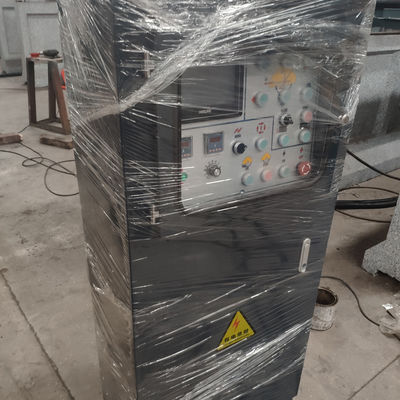

Packing&Shipping

Company Introduction

LINXING factory is located in Tianfanjie which near Jingdezhen, Jiangxi which is well-known as Ceramic capital. The company covers an area of 20,000 sqm with more than 200 employees. The company has 10 technical engineers, with increasing funds of R&D,the experienced engineers have worked out unique formula for Granite and marble cutting conditions. We could provide with stable performance, competitive price and fast cutting quality, the company has earned very good reputations among customers at home and abroad, especially our diamond segments have been able to keep 40% market share in domestic market.
The company has a completely scientific quality management system, we look forward to your sincere cooperation.

Our Services

Quality makes achievements, service creats future!

Exhibition

FAQ

Q1:Are you a factory or trading company?

A:We are factory. Located at Tianfanjie industry, Poyang county, Jiangxi Province.

Q2:How is your product quality?
A. We have strict quality control system . We guarantee our products quality.

Q3:What you will provide to us when your products have warranty?
A:Please give us detailed report,which including warranty picture, and start to use time, how long, problem.
We will try to find a way to solve those problem.If it's our problem and there are no way to solve then we can make compensation..

Q4:Do you offer free sample?

Normally we do not offer free sample, but we guaranty our product's quality and try best to consider the suitability of application per market.
