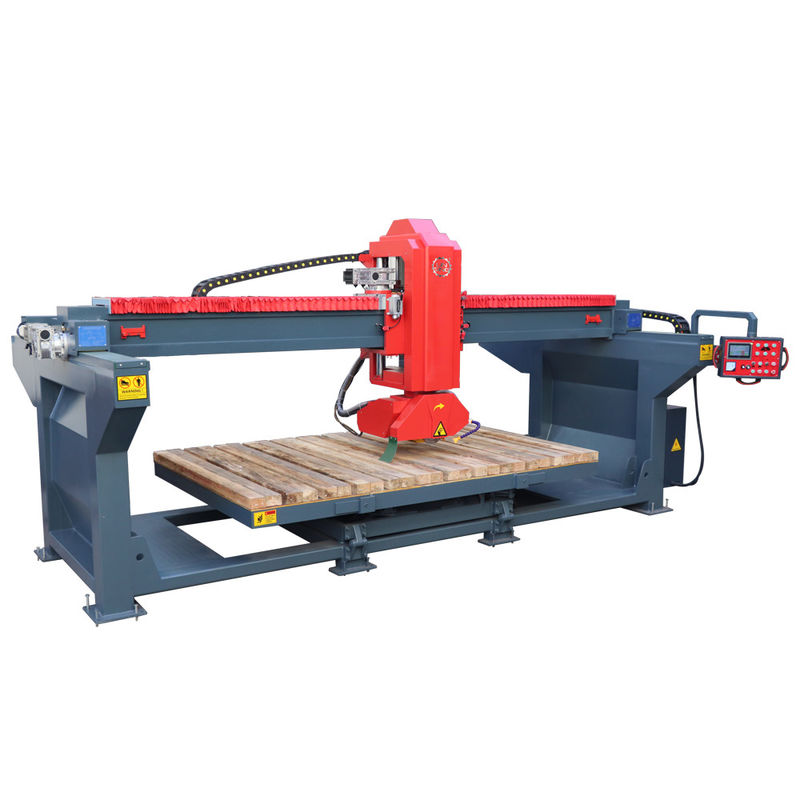

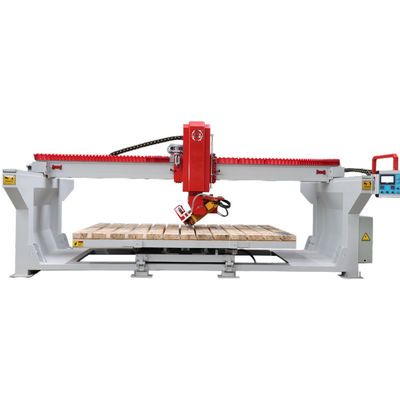

3200x2000x80mm Worktable Dimensions Infrared Bridge Cutting Machine for Granite Cutting

Large Image : 3200x2000x80mm Worktable Dimensions Infrared Bridge Cutting Machine for Granite Cutting

Product Details:

Place of Origin:	Jiangxi, China
Brand Name:	Linsing

Payment & Shipping Terms:

Price:	$14,000.00/sets 1-4 sets

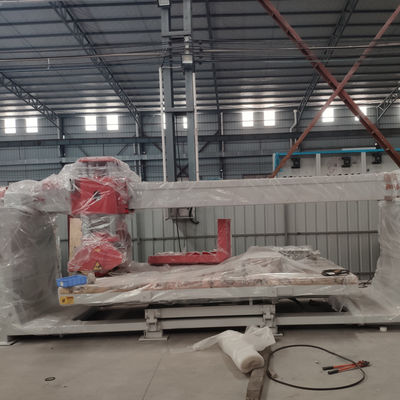

Packaging Details:	Plastic film, wooden case, etc
Supply Ability:	20 Set/Sets per Month Stone block cuting machine

Contact Now

3200x2000x80mm Worktable Dimensions Infrared Bridge Cutting Machine for Granite Cutting

Description

Applicable Industries:	Building Material Shops, Manufacturing Plant, Retail, Construction Works , Stone Industry	Showroom Location:	Egypt, Canada, Turkey, United Kingdom, United States, France, Viet Nam, Philippines, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangla
Condition:	New	Type:	Stone Cutting Machine
Use:	Granite Cutting	Production Capacity:	High Speed
Voltage:	380V/50Hz	Power:	18.5KW
Dimension(LWH):	6000x4800x3200mm	Weight:	4200 Kg
Warranty:	1 Year	Key Selling Points:	High-accuracy
Cutting Thickness (max):	10mm	Machinery Test Report:	Not Available
Video Outgoing-inspection:	Provided	Marketing Type:	Hot Sell Product 2023
Warranty Of Core Components:	1 Year	Core Components:	Motor, Pump, Engine, PLC
Product Name:	Infrared Bridge Cutting Machine	After-sales Service Provided:	Online Support
Application:	Granite Cutting	Usage:	Stone Cutting
Control System:	PLC(imported Brand)	Color:	Red Or Customized
Feature:	High Cutting Efficiency	Max Blade Diameter:	350/400/500mm
Motor:	18.5KW	Worktable Dimensions(LxW):	3200x2000x80mm
Port:	Shanghai, Shenzhen, Ningbo, Xiamen, Etc

Hot Sell Infrared Bridge Cutting Machine China Exports High Quality Factory Customized Machine

PRODUCTS INTRODUCTION

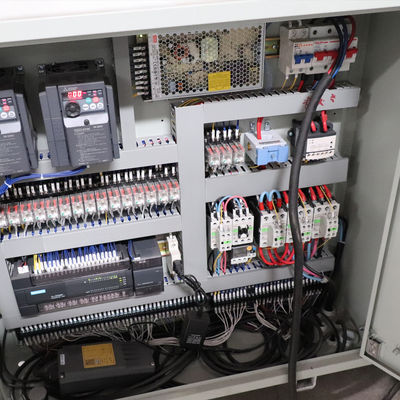

1, It adopts computer control, touch operation interface, with wireless remote control.
2, The main control components are international famous brand components such as Xiamen Eagle
main motor, Mitsubishi converter, Inovance PLC and touch screen, German original encoder and
Simon button, OMRON relay, Taiwan Youshun solenoid valve, NSK bearing, etc.
3, The cross beam adopts oil-immersed track, stepless speed regulation for horizontal movement,
longitudinal use linear guides and high-precision magnetic count to ensure the cutting precision
movement.
4, Saw blade D350-400mm suitable to cut 1-5cm slabs, table 360 degrees rotation each 45 degrees
automatic positioning, 0-85 degree tilt for loading slab,
5, Main motor frequency converter, steel/concrete frame and operation system language are
optional items which available upon request.

Product specifications:

TYPE	Unit	SCT-400
Blade diameter	mm	350-400
Max.working dimensions (LxWxH)	mm	3200x2000x80
Worktable dimensions (LxW)	mm	3200x2000
Blade rotation degree	n°	0° - 85°
Worktable tilting degree	n°	0° - 360°
Main motor power	KW	18.5
Water consumption	M³/h	3.5
Dimension (LxWxH)	mm	6000x4800x3200
Weight	kg	4200
